High Gloss PCM/VCM Steel

High-gloss PCM (pre-coated metal sheets) and VCM (laminated metal sheets) meet the demands of home appliances for aesthetic appeal and durability. The high-gloss finish gives home appliances a luxurious visual impact, elevating their premium image and enhancing their competitiveness.

We offer high-gloss PCM/VCM steel sheets in a wide range of colors and with superior surface quality. Our product offerings include coils and sheets. In addition to high-gloss finishes, we also provide matte finishes, various textures, and patterns to meet the diverse design needs of home appliance OEMs.

Specifications

Parameter Items	PCM Steel Sheet (High Gloss Series)	VCM Steel Sheet (High Gloss Series)
Substrate Material	Cold-rolled steel sheet (CR), hot-dip galvanized steel sheet (GI), aluminized zinc steel (GL)	Cold-rolled steel sheet (CR), hot-dip galvanized steel sheet (GI), aluminized zinc steel (GL)
Thickness Range	0.30mm – 1.20mm	0.35mm – 1.00mm
Width Range	600mm – 1250mm	600mm – 1250mm
Coating/Film Type	PE, HDP, PVDF	PVC/PET composite film (high transparency, pearlescent, brushed, monochrome)
Salt Spray Test	≥480 hours (cross-scratches, rust ≤2mm)	≥500 hours (bubbling at the lamination edge ≤1mm)
Processing Performance	T-bend ≤3T (High gloss coating requires optimization, minimum 2T)	T-bend ≤2T (special formula films can reach 1T)
Color Customization	Bright Silver, Pearl White, Titanium Gray, Champagne, RAL/PANTONE All Series	High-gloss solid color, glass-like, stainless steel-like, wood grain, marble pattern

Our High-Gloss Steel Sheet Products

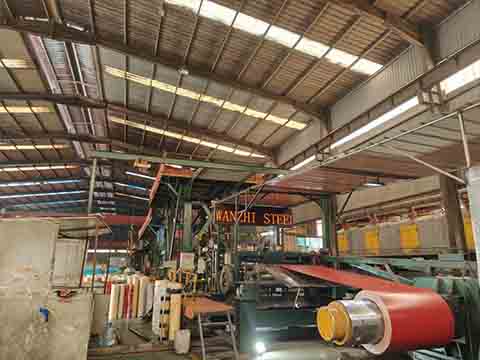

We operate independent coating and lamination production lines, supported by a technical team dedicated to the R&D of surface materials for home appliances. Our high-gloss PCM and VCM steel coils undergo full-process online monitoring from primer treatment to topcoat/lamination, ensuring consistent gloss and reliable adhesion across every meter of steel strip.

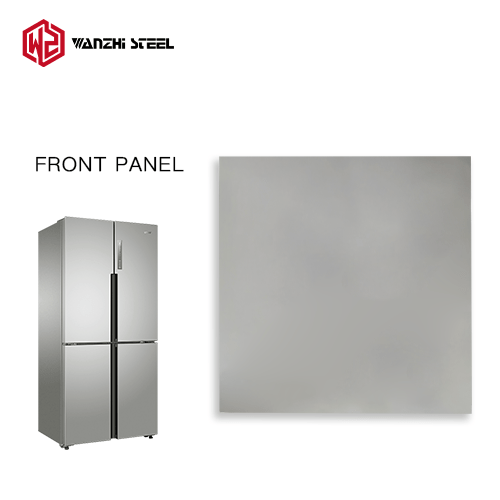

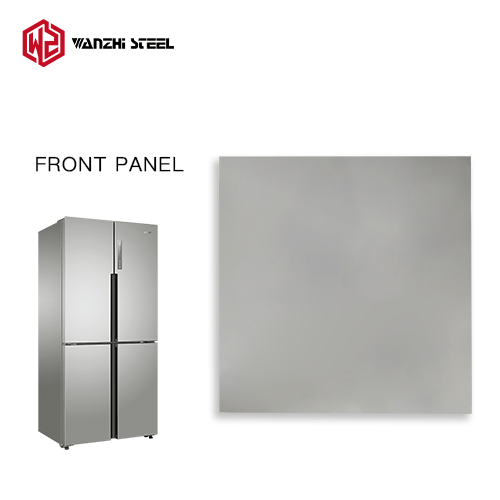

PCM Steel

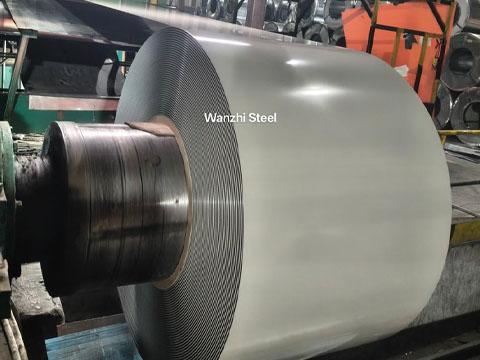

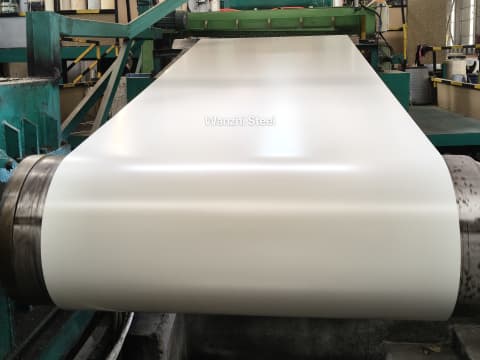

High-gloss PCM Steel utilizes a continuous roll-coating and high-temperature curing process. A specialized high-gloss coating is uniformly applied to the surface of high-quality metal substrates, forming a dense, smooth, and highly reflective protective decorative layer after high-temperature curing.

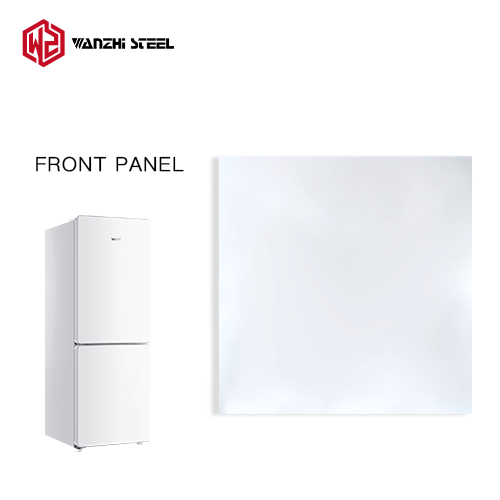

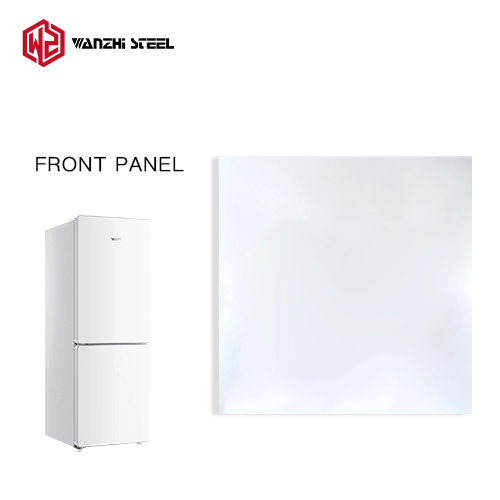

Common colors include Bright Silver, Pearl White, Titanium Gray, and Champagne. All colors can be customized into high-gloss versions based on color swatches or the RAL color chart. This product has been mass-produced for use in numerous high-end refrigerator door panels and washing machine cover projects both domestically and internationally.

For more information on steel for refrigerators, please refer to → Applications of Color-Coated Steel in Refrigerators

VCM Steel

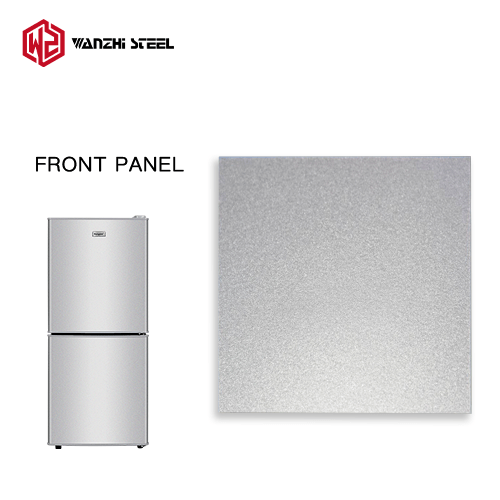

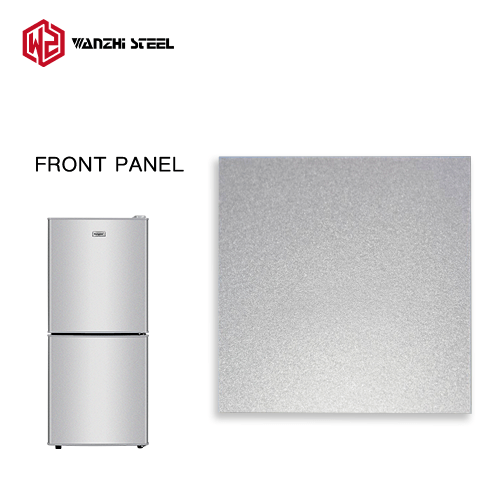

VCM steel sheets achieve an even more extreme mirror-like or pearlescent high-gloss effect than PCM by laminating high-performance PET/PVC decorative films onto a metal substrate. Our R&D team recently customized a high-gloss VCM product for a Lebanese client for use in high-end French-door refrigerator panels: a 0.55mm thick galvanized substrate laminated with an optical-grade, high-transparency PET film.

After receiving the shipment, the client provided the following feedback: “The gloss of the actual panels completely exceeded our expectations—it even surpassed the imported materials we used previously. The finished unit looks incredibly high-end.”

Popular Home Appliance Steel Purchased by Clients

• RAL 9003 color steel coil
• RAL 7035
• ‌RAL 9005
• ‌RAL 9016

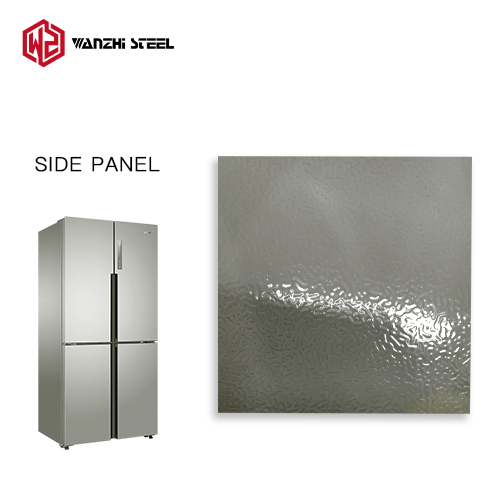

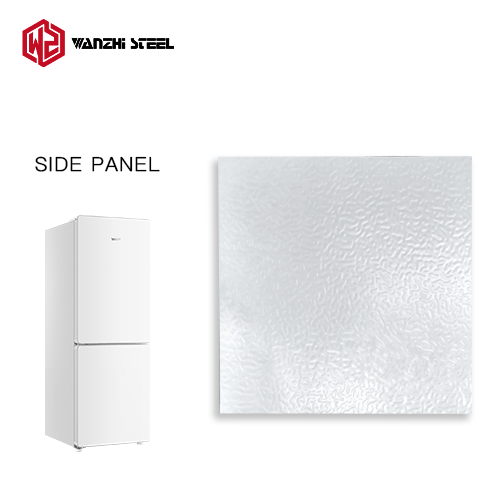

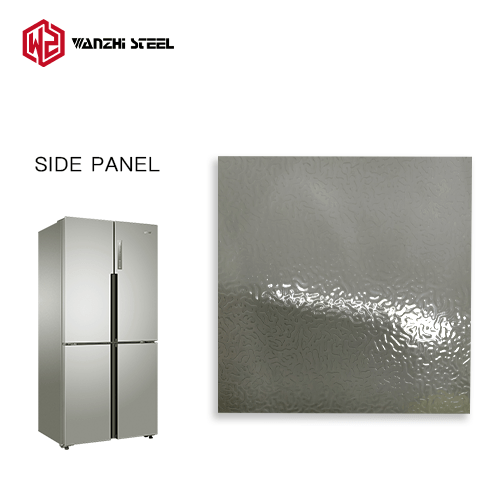

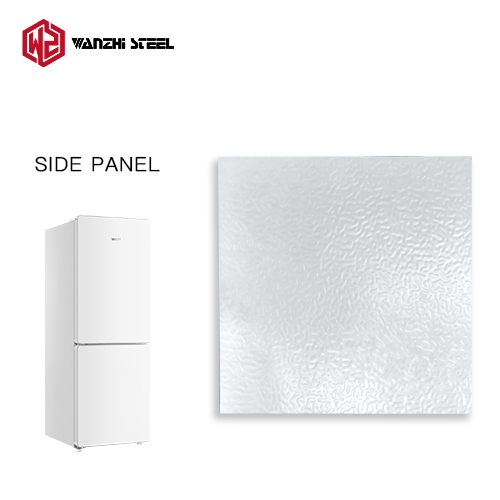

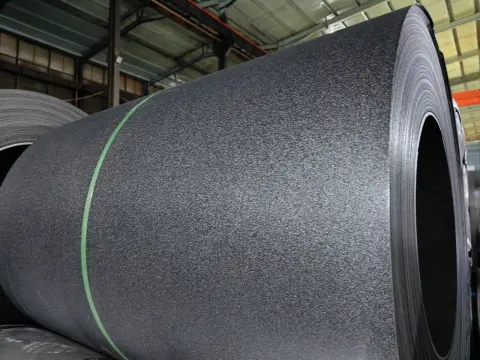

• Orange Peel Texture Color-Coated Steel Coils

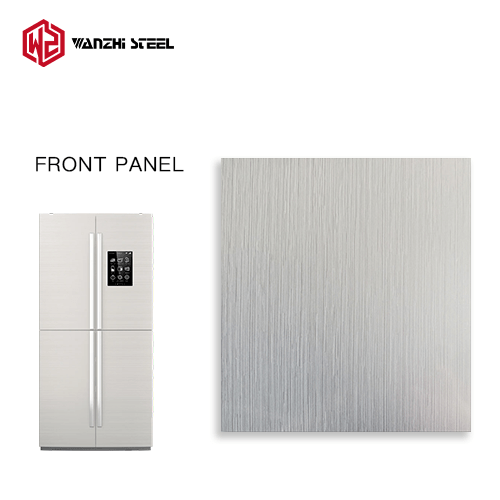

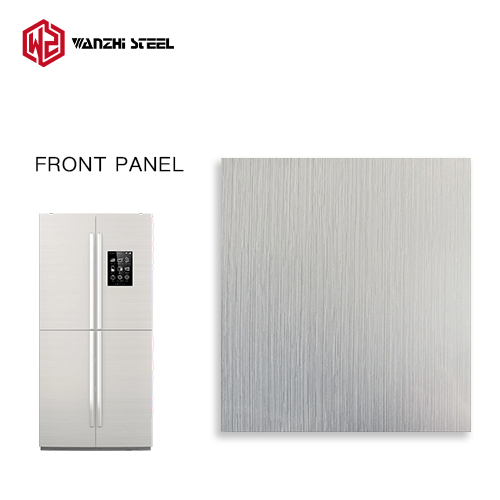

• Laminated Film-Coated Metal Coils

FAQ

Q1: What is the key difference between high-gloss PCM steel sheets and VCM steel sheets? How should I choose between them?

• PCM steel sheets are produced using a roll-coating and curing process. Their surface consists of a paint coating layer, offering uniform gloss, high cost-effectiveness, and excellent mass-production stability. They are primarily available in solid high-gloss colors and are suitable for large-scale, routine mass production of home appliances;
• VCM steel sheets use a lamination process, featuring a high-gloss polymer film on the surface. They offer a more extreme mirror-like effect, a higher-end texture, and superior scratch and wear resistance, enabling a more refined high-gloss finish.
• High-gloss PCM steel sheets are the preferred choice for standard home appliance cabinets and mid-range panels, while high-gloss VCM steel sheets are prioritized for high-end doors, built-in appliances, and premium luxury models.

Q2: How should one choose between PCM and VCM high-gloss products? Which is more expensive?

• PCM high-gloss has a lower cost and offers flexible color options, making it suitable for high-volume, single-color appliance panels with flat or simple curved surfaces (such as refrigerator side panels and washing machine surround panels).
• VCM high-gloss surfaces offer a more refined finish (capable of mirror, pearlescent, and 3D textured effects) and better resistance to deep scratches, but the unit price is typically 15%–30% higher than PCM. It is suitable for exterior components such as door panels and control panels on flagship models. Both materials are suitable for mass production; we recommend a comprehensive evaluation based on product positioning and budge.

Q3: How long does the high gloss last? Will it fade or yellow over time?

• The gloss retention of PCM steel depends on the type of paint used. For example, PE paint typically lasts 10 years in indoor settings, while PVDF paint can maintain its gloss for over 20 years.
• High-gloss VCM steel sheets use weather-resistant PVC or PET films, resulting in high gloss retention. We use high-quality substrates and premium PVC or PET films, ensuring our products retain their gloss for decades.

Q4: Do you offer customization for colors, dimensions, and special finishes?

Yes, we support customization. For colors, we generally follow the RAL color chart; for special colors, we can produce based on samples provided by the customer. Regarding sizes, we offer slitting and shearing services. Finishes can be upgraded to include anti-fingerprint and scratch-resistant options.

Q5: What are the minimum order quantity (MOQ) and lead time?

High-gloss PCM: Minimum order of 5 tons per color and specification; High-gloss VCM: Due to the complexity of the production process and the need for coordination across multiple production workshops, the minimum order is generally 25 tons. The lead time is typically 7–30 business days.

Why Choose Us?

• Extensive Experience: With over 15 years of production and export experience, we have been a long-term supplier to home appliance manufacturers both domestically and internationally, receiving high customer feedback.
• High Product Quality: Our production lines feature advanced manufacturing processes and are staffed by multiple professional technicians, ensuring high-quality and consistent products.
• Comprehensive Certifications: We are certified to ISO 9001, ISO 14001, ISO 45001, and CE standards. We have also passed all third-party SGS inspections required by clients; please visit our SGS report page for details.
• High Production Efficiency: We have dedicated personnel overseeing the entire production process to ensure safety and efficiency, enabling rapid completion of your products.

In addition to high-gloss steel for home appliances, we also supply matte-finish steel in various textures and patterns—including stone, wood grain, metallic, and pearlescent finishes—to meet the diverse design needs of home appliance manufacturers. If you have any requirements for home appliance steel, please feel free to contact us at any time.
