914mm PPGI Steel

Common widths for PPGI steel coils include 1,000 mm, 1,200 mm, and 1,250 mm, while 914 mm is a very practical “intermediate width.” For customers who need to control costs, minimize edge scrap, and cover multiple finished product specifications with a single purchase, 914 mm PPGI coils offer a highly flexible option.

We supply 914mm PPGI color-coated steel coils along with slitting, shearing, and forming equipment, enabling the production of PPGI strip, PPGI flat sheets, and PPGI corrugated sheets.

914mm PPGI Steel Products We Can Supply

PPGI Steel Coils

• Width: 914mm (Other widths ≤ 1250mm are also available)
• Base Material: Galvanized Steel Coils
• Coating: PE/SMP/HDP/PVDF
• Zinc Coating: As per customer requirements (Z30–275 g/m²)
• Thickness: Typically 0.12 mm–1.2 mm; specific thicknesses depend on the order
• Colors: Blue, pure white, traffic white, gray, traffic red, brick red, dark gray, green, etc. (based on the RAL color chart); custom colors are also available upon request.
• Surface: Smooth, embossed (commonly orange peel texture), matte, high-gloss, wrinkled, etc.
• Inner Diameter: 508 mm / 610 mm
• Coil Weight: Typically 3–5 metric tons
• Applications: Building roofing and wall cladding, home appliances, decoration, pipe manufacturing, shelving, doors, ventilation, etc.

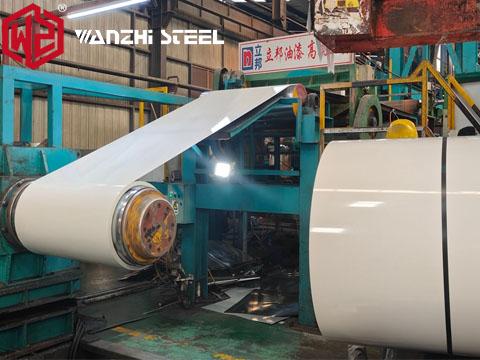

914mm ppgi coil

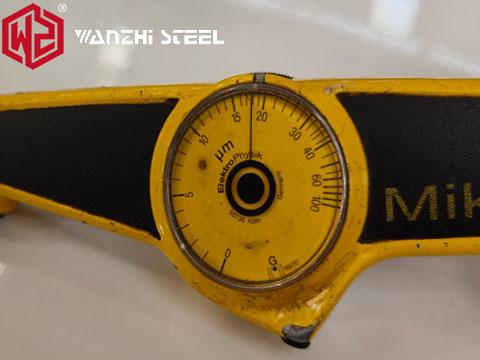

Paint film test

PPGI Slit Strips

• Raw Material Width: 914 mm PPGI Coils
• Slitting width: Customizable per customer requirements; typically 20 mm–900 mm
• Slitting method: Longitudinal shearing with a multi-blade cutter
• Edges: Raw edges/deburred, as per customer requirements
• Inner diameter: Small coils available per customer requirements
• Packaging: Vertical coils, horizontal coils, wooden pallets, steel pallets, etc.
• Applications: Pipe manufacturing, profiles, shelving, cable trays, decorative strips, edging, bent parts, etc.

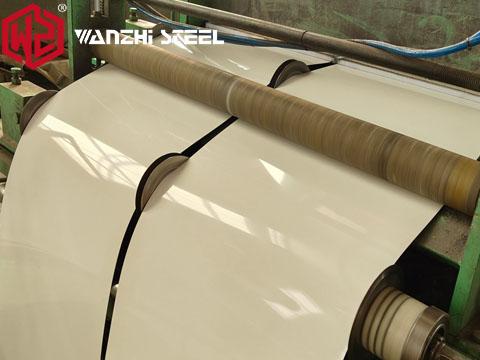

PPGI roll slitting

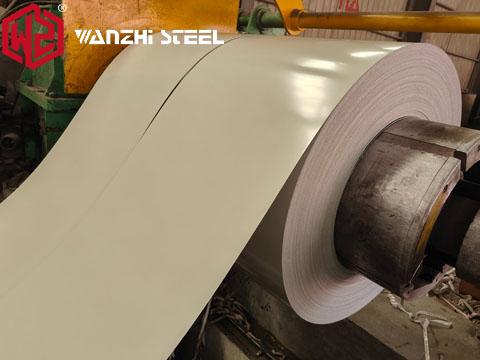

PPGI steel strip

PPGI Flat Sheets

• Raw Material: 914mm PPGI coils or slitted strips
• Length: Custom lengths per customer specifications (≤6m)
• Width: 914mm or width after slitting
• Flatness: Smooth surface after flattening, suitable for stamping, bending, and shearing
• Applications: Home appliance panels, door panels, ventilation ducts, decorative panels, construction hoardings, etc.

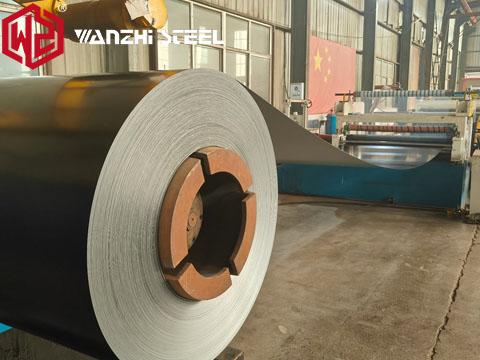

PPGI cut line

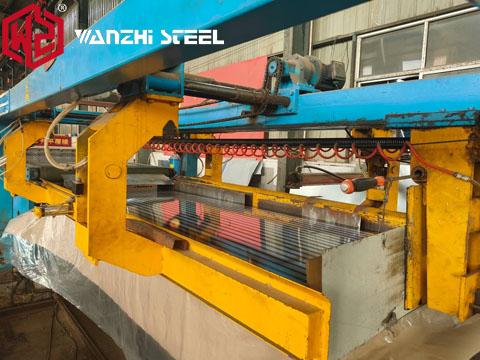

Sheet metal cutting

PPGI Corrugated Steel Sheets

• Raw Material: 914mm PPGI coils
• Corrugation: As per customer requirements or standard profiles
• Length: As per customer requirements (≤6m)
• Color: As per customer requirements (RAL color chart or custom)
• Applications: Roofing panels, wall panels, construction fencing, canopy panels, container panels, portable buildings, etc.

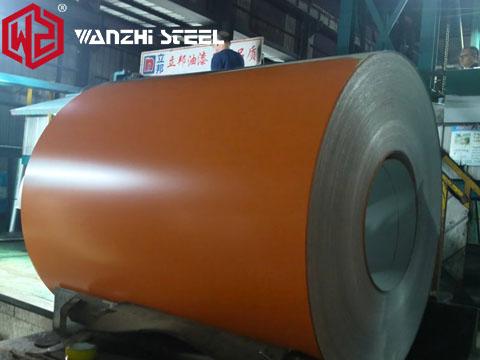

PPGI roll production completed

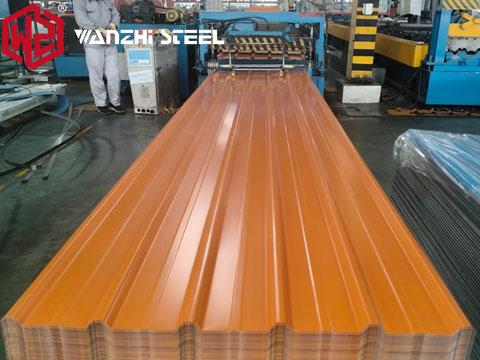

PPGI roll forming is a corrugated sheet

A 914mm PPGI coil—what width of strips is it suitable for slitting into?

When actually setting up the cutting layout, the effective width is generally calculated at around 900mm, leaving allowances for trim and edge wire on both sides. Common strip widths typically range from 20mm to 900mm, with specifications such as 50mm, 100mm, 150mm, 300mm, and 450mm being more common and easier to arrange.

Below are the layout methods we commonly use in our workshop (for strips of the same width); customers can refer to them directly:

• 400 mm × 2 + 100 mm × 1 = 900 mm
• 350 mm × 2 + 200 mm × 1 = 900 mm
• 250 mm × 3 + 150 mm × 1 = 900 mm
• 200 mm × 4 + 100 mm × 1 = 900 mm
• 120mm × 7 + 60mm × 1 = 900mm
• 80mm × 11 + 20mm × 1 = 900mm

The advantage of this layout is that it minimizes edge waste and maximizes material utilization. If customers require multiple widths simultaneously, we will first calculate the optimal blade arrangement for you before providing a quote. This is because we base our recommendations on how to minimize material waste, achieve better edge quality, and ensure smoother subsequent leveling and profiling processes.

Steel strip production

Slitting into PPGI strip

Why do Customers Choose Us?

We have over 15 years of production and export experience, with two color-coated steel coil production lines. Our factory is located in Boxing County, Binzhou City, Shandong Province, and has obtained ISO, CE, and SGS certifications. We export to more than 120 countries.

We offer a wide range of products. In addition to supplying PPGI steel coils, we perform slitting (strips), shearing (flat sheets), and profiling (corrugated sheets) in-house, saving customers time and procurement costs while ensuring product quality.

All you need to do is provide us with the following details: thickness, zinc coating, color, coating type, desired widths, tonnage per coil, whether you need the coils flattened or profiled, and packaging requirements. We’ll clarify all necessary details with you before providing a quote and delivery schedule.

steel coil package

Standard export packaging for steel plates

FAQ

Q: Will there be any waste from edge trimmings after slitting?

There will be a small amount of edge trimmings, but the advantage of the 914mm width is that many specifications can be laid out neatly. We can optimize the cutting layout based on your width combinations to minimize edge trimmings as much as possible.

Q: Can the coils be flattened directly?

Yes. 914mm coils can be flattened directly into 914mm flat sheets, or they can be longitudinally slit into wide strips before flattening.

Q: Can you produce PPGI profiled sheets?

Yes. We have profiling equipment capable of processing various types of PPGI corrugated steel sheets.

Q: Can colors and coatings be customized?

Yes. Colors can be customized according to the RAL color chart or your samples. Common coatings such as PE, HDPE, and PVDF can be selected based on the intended application and usage environment (please contact us for coating recommendations).

Q: What is the minimum order quantity?

This depends on the specifications, color, thickness, and processing method. Generally, the minimum order quantity is 10 metric tons per specification. We will schedule production based on the order and do our best to lower the barrier to placing trial orders for our customers. For specifics, please send us your required width, thickness, color, and quantity directly.
