Q195 Galvanized Steel Sheet

Q195 galvanized steel sheet is made from a Q195 mild steel substrate, hot-dip galvanized. The zinc coating offers excellent corrosion resistance, extending the service life while retaining the base material’s good toughness and workability. It’s a relatively low-cost option and is widely used in applications such as building roofs, partitions, air ducts, furniture, and hardware, where high strength and rust prevention are not essential. Wanzhi Steel, a leading steel sheet manufacturer, has specialized in Q195 galvanized steel sheet for decades and stocks a wide variety of thicknesses, zinc coatings, lengths, and widths. If you’re interested, please contact us.

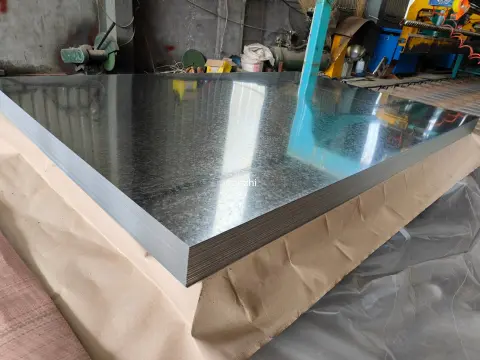

Q195 hot-dip galvanized steel sheet

Q195 hot-dip galvanized steel sheet

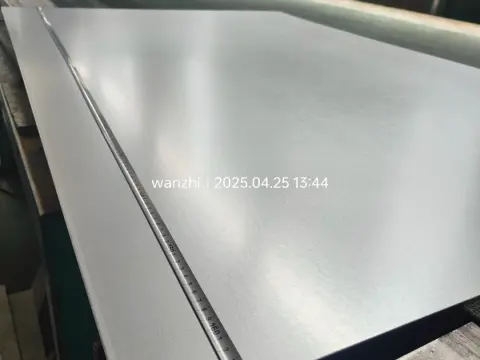

Q195 zero spangle galvanized steel sheet

Q195 zero-spangle galvanized steel sheet

Specification

Item Q195 galvanized steel sheet
Place of Origin Shandong, China
Grade Q195
Thickness 0.12mm-2mm
Width 600mm-2,000mm
Substrate Hot rolled steel/Cold rolled steel
Surface Structure Zero spangles, Small spangles, Regular spangles, Big spangles
Technique Hot Rolled, cold rolled
Zinc Layer Thickness 30g/㎡-275g/㎡ (Z30 – Z275/ G90)
Standard AISI, ASTM, BS, GB, JIS
Certificates ISO 9001, SGS, ABS, BV
Package Standard export package
Sample Free Available
Payment term TT 30% Advance + 70% Balance
Price Item FOB, CIF, EXW, CFR, etc
MOQ 5 Tons
Wanzhi-Spangles

Wanzhi-Spangles

Core Features

  • Low Carbon Toughness: The properties of low carbon steel give it excellent plasticity, making it easy to bend, stamp, and perform other cold-forming processes without cracking.
  • Moderate Strength: The yield strength is approximately 195 MPa, making it suitable for non-load-bearing or lightly load-bearing structures.
  • Corrosion Resistance: The hot-dip galvanized surface layer creates a physical and electrochemical barrier, effectively preventing rust and extending the service life of the substrate.
  • Surface Spangle: The surface exhibits a unique spangle crystal pattern, a typical appearance of hot-dip galvanizing. Wanzhi Steel can customize the spangle size.
  • Surface Treatment: Optional post-treatments such as passivation and oiling can further enhance white rust resistance or provide temporary protection.
  • Low Cost: The combination of Q195 material and galvanizing offers a cost-effective option, making it an entry-level choice for rust-resistant sheet metal.

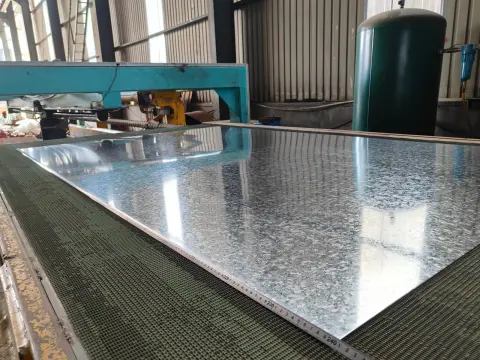

4x8 Gi HDP Metal Sheet Iron Sheets

4×8 Gi HDP Metal Sheet Iron Sheets

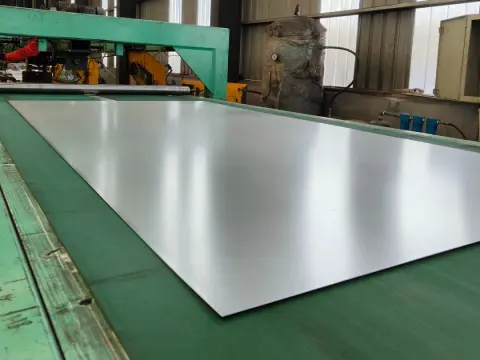

Q235 Galvanized Cold Rolled Steel Sheet Z180

Q235 Galvanized Cold Rolled Steel Sheet Z180

Applications

Roofs

It can be processed into roof vent covers and small canopy panels. It can also serve as auxiliary support for the roofs of low-rise or temporary buildings, where structural strength is not a high requirement.

Baseboards

It can be used as base for small appliances, baseboards for simple shelves, and baseboards for temporary outdoor platforms, supporting light weights thanks to its basic strength.

Casings and Containers

It can be used as casings for small appliances such as fans, humidifiers, computer case, lamps, and electric heaters, protective casings for mechanical equipment, enclosures for electrical control cabinets, storage boxes, and the outer lining of liquid storage tanks.

Walls

It can be used as wall studs and interior wall partition frames in lightweight steel structures, providing base support for the walls. It can also serve as a simple protective base for exterior walls.

Carriage Interiors

It can be used as auxiliary lining for the interior of small freight cars, applied to the side walls or partial areas of the floor to enhance wear and corrosion resistance and facilitate maintenance.

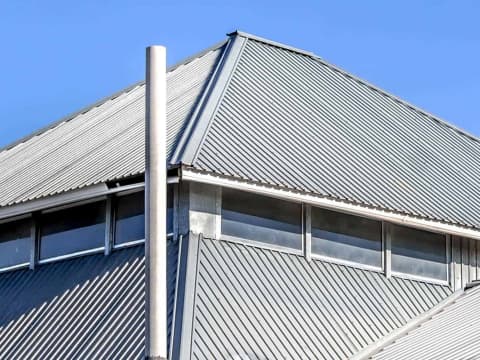

Metal house roof

Metal house roof

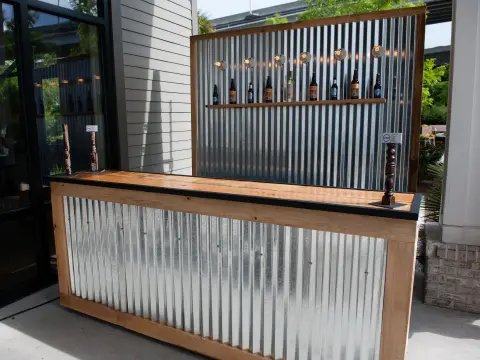

Counter covering

Counter covering

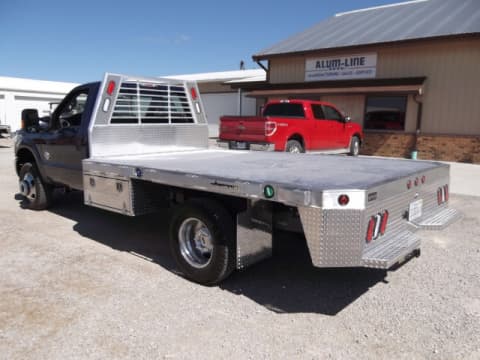

Truck bed galvanized steel siding

Truck bed galvanized steel siding

Recommendations for zinc layer selection

(1) Indoor, dry environments: Choose a thinner zinc coating, such as 60g/m² or 40g/m².

(2) Outdoor or humid environments: Choose a thicker zinc coating, 80g/m² or higher.

(3) If subsequent painting is required: We recommend a spangle-free or mini-spangle surface for better adhesion.

(4) For deep drawing: Ensure the material’s ductility meets the required requirements.

Interpretation of the Meaning of “Q195”

“Q”: Represents the steel’s yield strength.

“195”: Indicates the steel’s yield strength is at least 195 MPa. This is a core mechanical property that determines the material’s load-bearing capacity and formability.

“Galvanizing” Process

Hot-dip galvanizing is a classic rust prevention process, the most popular method. This involves immersing cold-rolled or hot-rolled steel coils in molten zinc to form a uniform, dense zinc coating. This coating isolates the steel substrate from the corrosive environment and, even in the event of damage, acts as a “sacrificial anode,” preferentially resisting corrosion and protecting the steel.

Q195 GI Steel Plate Production Video

Q195 Galvanized Steel Sheet VS Q235 Galvanized Steel Sheet

Features Q195 Galvanized Steel Sheet Q235 Galvanized Steel Sheet
Core Specifications Yield Strength ≥ 195 MPa Yield Strength ≥ 235 MPa
Processing Performance Excellent Good
Hardness/Rigidity Relatively low High
Application Preferences For parts requiring high formability Parts with high structural and support requirements
Cost Usually slightly lower Usually slightly higher

Note: The most fundamental difference is that Q235 is stronger, harder, and has better load-bearing performance. Q195 is softer, has excellent deep drawing and tensile properties, and is not prone to cracking.

FAQs

Q: Can Q195 galvanized sheet be welded? What precautions should be taken?

A: Yes, but be aware that the zinc layer will volatilize at high temperatures, producing fumes. Ventilation is essential, as this may affect weld quality.

Q: What is white rust on the surface of galvanized sheet? How can it be treated and prevented?

A: White rust is a corrosion product of zinc and is typically caused by humid, poorly ventilated environments. Preventing it is by maintaining a dry, well-ventilated storage environment.

Q: How should I choose between galvanized sheet and stainless steel sheet?

A: The main considerations are cost and corrosion environment. Q195 galvanized sheet is cost-effective and suitable for most general corrosion environments. Stainless steel is more expensive and is suitable for applications with high corrosion rates or where aesthetics are of paramount importance.

Standard Export Package

Inner packaging

Inner packaging

Outer packaging

Outer packaging of gi sheet

Q195 galvanized steel sheet Manufacturer -Wanzhi Steel

Wanzhi Steel specializes in steel supply. All Q195 galvanized steel sheet utilizes high-quality substrates and a standard galvanizing process, resulting in a uniform and highly adherent zinc layer. With a stable supply, strict quality control, flexible size customization, and professional pre-sales technical support, we ensure our customers receive highly consistent products and an efficient service experience.

If you’re looking for a reliable Q195 galvanized steel sheet supplier, please feel free to contact us. Our professional team will provide you with the most suitable product specifications and a competitive quote.
