A653 steel

A653 steel has a wide range of uses, so why is it so popular? The reason is mainly due to the galvanizing layer and zinc content, which give it excellent corrosion resistance. It is a high-strength, low-alloy steel. Therefore, they are often used in outdoor hardware such as outdoor signs, trash cans, heating and cooling systems, and electrical protection. So, the ASTM A653 standard is used worldwide to ensure that the steel produced meets certain quality requirements and has consistency and reliability.

a653 galvanized sheet

steel coil A653

For example, this material has a unique sequin pattern, so it changes on each sheet or coil. In addition, these materials can be purchased at Wanzhi Steel. Then this article will introduce the specifications, classifications, and advantages of A653 and equivalent specifications. Then, Please read on.

Product Details

Product Name A653 Steel
Thickness Cold rolled:0.3~3.0mm; hot rolled:1.8-2.0mm;
Width 600mm to 2,000mm
Coating Thickness Designation Zn coating: G20, G30, G40, G60, G90, G115,G140, G165, G185, G210.
Alloy coating: A25, A40, A60.
Spangle Zero spangles (0.12-2.0 mm), 0.7-4 mm with small spangles, regular (big) spangles, big spangle
Zinc Layer Thickness 30 g/m2-275 g/m2
Material DX51D + Z, DX52D + Z, DX53D + Z, DX54D + Z, DC51D + Z, DC52D + Z; SGCC; S350GD, etc.
Standard AISI, ASTM, BS, DIN, GB, JIS
Structural Steel Grades SS33, SS37, SS40, SS 50A class1, SS 50B class 2, SS 50class3, SS 80
Surface Treatment Passivation(C), Oiling (O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Certificates SGS, BV, ISO 9001
Packaging Standard export package or as per your requirements
Delivery Time 5-25 working days after payment, mainly depending on order quantity

A653 steel thickness tolerance

Thickness(mm)  allowable deviation Width
Up Down ≤1000 >1000~≤1300
0.1 0.03 0.03
0.15 0.04 0.04
0.2 0.05 0.05
0.25 0.05 0.05
0.3 0.03
0.4 0.04 0.04
0.5 0.08 0.08
0.5 0.045 0.05
0.6 0.05 0.05
0.75 0.1 0.1
0.8 0.05 0.05
1 0.13 0.13
1 0.055 0.06
1.2 0.08 0.08
1.25 0.13 0.13
1.5 0.08 0.08
1.75 0.15 0.15
2 0.18 0.18
2 0.1 0.1
2.25 0.2 0.2
2.5 0.23 0.23
2.5 0.1 0.11
2.75 0.25 0.25
3 0.25 0.25
3 0.13 0.13
3.25 0.3 0.3
3.5 0.3 0.3
3.75 0.36 0.36
4 0.36 0.36
4 0.17 0.17
4.99 0.36 0.36
5 0.17 0.17
6 0.17 0.2
8 0.17 0.22





Processing Line

A653 steel Scope of the Standard

1. Firstly, the ASTM A653 standard covers hot-dip galvanized pure zinc and zinc-iron alloy-coated steel strips delivered in coils or as cut-to-length products.

2. Secondly, the standard specifies requirements for the chemical composition, mechanical properties, physical properties, and processing properties of hot-dip galvanized steel sheets and strips.

What is A653 steel?

In detail, it is a standard developed by the ASTM ( American Society for Testing and Materials ) to evaluate the quality of hot-dip galvanized steel sheets and strips. While A-653 is one of the ASTM branch standard numbers. The standard for hot-dipped galvanized iron alloy or galvanized steel sheet is ASTM A653.

Wanzhi-Spangles

Types Of A653 Steel

In summary, A653 Steel Galvanized Sheet is available in metallurgical designations, providing different degrees of formability and strength to the base sheet:

Types
Commercial steel CS ( CSA, CSB, CSC )
Forming steel FS ( FSA, FSB )
Deep drawing steel DDS ( DDSA, DDSC )
Extra deep drawing steel EDDS
Structural steel SS
High strength low alloy steel HSLAS (HSLAS Type A,B,F)
Solution hardened steel SHS
Bake hardenable steel BHS

ASTM A653 steel equivalent

It is an American standard, which is equivalent to the Japanese JIS G 3302, in the meantime, Europe EN 10346. Specifically, It remains a hot-dip galvanized steel sheet with a coating thickness of 0.3 oz/square inch. What’s more, the material has general specifications.

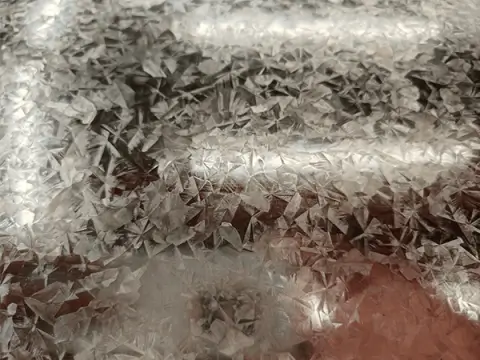

big-spangle

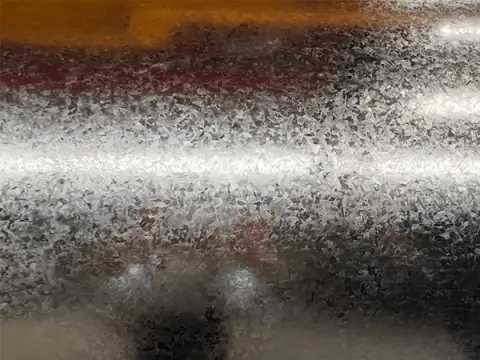

regular-spangle-surface

While, the American standard is special. There are both metric weight units (g/m2) such as Z90 and British weight units (oz/ft2) such as G90. Meanwhile, the weight difference between the two is about 3 times.

regular-spangle-coil

Zero-Spangle-GI-Coils

What is ASTM A653 G90 specification

For example, ASTM A653 G90 is equivalent to the ASTM A653 specification, and “G90” refers to the galvanized layer. Meanwhile, G90 represents the meaning that the sum of the two-sided zinc coating is 0.9 oz/ft2 (the average minimum value of three points on both sides) or 0.8 oz/ft2 (the smallest single point on both sides) value.

Galvanized Roofing Panels

A653 steel panels

Wanzhi regular spangle A653 steel

mini spangle

Advantages Of A653 Steel

Hot-dip galvanized thin-coated materials

Hot-dip galvanized thin-coated materials provide good welding and processing capabilities. Thus, it can be used for a variety of purposes, ranging from casual use to detailed drawing.

galv_stages

Thick galvanized hot-dip galvanized materials
Due to the corrosion resistance is strong in thick galvanized hot-dip galvanized materials. So you can employ a variety of applications by selecting spangles and post-processing functions,

Hot-dip alloy steel
Hot-dip alloy steel has strong corrosion resistance, excellent coating adhesion, and ductility, which make it perform well during processing. Therefore, it has the advantage of having a lovely appearance and being able to be employed in applications where the surface is not painted.

Chemical Composition Of A653 Steel

The ASTM A653 standard specifies requirements for the chemical composition of steel plates and strips, in detail, it includs the content of carbon, manganese, phosphorus, sulfur, and other elements to ensure the strength and corrosion resistance of the steel.

Designation Carbon Manganese Phosphorus Sulfur CuB Ni B CrB MoB vC CBC, D   Ti
Ss Grade
33[230] 0.20 0.04 0.04 0.20 0.20 0.15 0.06 0.008 0.008 0.30
37[255] 0.20 0.10 0.04 0.20 0.20 0.15 0.06 0.008 0.008 0.30
40[275 0.25 0.10 0.04 0.20 0.20 0.15 0.06 0.008 0.008 0.30
50[340] Class 1 and 2 0.40 0.20 0.04 0.20 0.20 0.15 0.06 0.008 0.008 0.30
50[340] Class 3 0.50 0.04 0.04 0.20 0.20 0.15 0.06 0.008 0.008 0.30
80[550] 0.20 0.04 0.04 0.20 0.20 0.15 0.06 0.008 0.008 0.30
HSLAAS Type A
40[275] 0.20 1.20 0.035 0.20 0.15 0.06 0.008 0.008 0.30
50[340] 0.20 1.20 0.035 0.20 0.20 0.15 0.06 0.008 0.008 0.30
60[410] 0.20 1.35 0.035 0.20 0.20 0.15 0.06 0.008 0.008 0.30
70[480] 0.20 1.65 0.035 0.20 0.20 0.15 0.06 0.008 0.008 0.30
80[5501 0.20 1.65 0.035 0.20 0.20 0.15 0.06 0.008 0.008 0.30
HSLAS Type B5F
40[275] 0.15 1.20 0.035 0.20 0.15 0.06 0.008 0.008 0.30
50[340] 0.15 1.20 0.035 0.2 0.21 0.15 0.06 0.008 0.008 0.30
60[410] 0.15 1.20 0.035 0.20 0.22 0.15 0.06 0.008 0.008 0.30
70[480] 0.15 1.65 0.035 0.20 0.23 0.15 0.06 0.008 0.008 0.30
80[550] 0.15 1.65 0.035 0.20 0.24 0.15 0.06 0.008 0.008 0.30

Physical Properties Of A653 Steel

Its requirements include coating weight, zinc layer adhesion, as well as hardness, bending performance and cold bending performance, etc., to ensure that galvanized steel sheets and strips have good corrosion resistance and service life in various use environments.

Galvanzied-Strips-For-Sale

Zero spangle steel strip

Mechanical properties of a653 steel

In terms of mechanical properties, the ASTM a653 standard specifies requirements for steel such as tensile strength, yield strength, as well as elongation. These requirements are intended to ensure that the steel has high strength and toughness during use.

CLASSIFICATION TYPE YIELD STRENGTH
(Mpa) Min.
TENSILE STRENGTH (Mpa) Min. ELONGATION in 50mm Min. (%)
ASTM A653 CS type A 170/380 ≥ 20
CS type B 205/380 ≥ 20
CS type C 170/410 ≥ 15
FS type A 170/310 ≥ 26
FS type B 170/310 ≥ 26
DDS 140/240 ≥ 32
EDDS 105/170 ≥ 40
SS-Gr 230/Gr A/ Gr 33 230 310 20
SS-Gr 255/Gr B/ Gr 37 255 360 18
SS-Gr 275/Gr C/ Gr 40 275 380 16
SS-Gr 340 C1/Gr D/ Gr 50 340 450 12
SS-Gr 340 C2/Gr E/ Gr 50 340 12
SS-Gr 340 C3/Gr F/ Gr 50 340 480 12
SS-Gr 550/Gr E/ Gr 80 550 570

A653 steel plate

outer package

Chemical composition and physical properties of hot-dip zinc-coated Galvanized Structural Steel

SS GRADES C max P max S max Mn max Yield strength, min ksi Tensile strength, min ksi Elongation, min %
Grade 33 0.20 0.10 0.04 1.35 33 45 20
Grade 37 0.20 0.10 0.04 1.35 37 52 18
Grade 40 0.25 0.10 0.04 1.35 40 55 16
Grade 50 class1 0.25 0.20 0.04 1.35 50 65 12
Grade 80 Class1 0.25 0.04 0.04 1.35 80 82
GRADE CSA 0.10 0.03 0.035 0.60 25-55 50-65 20-40

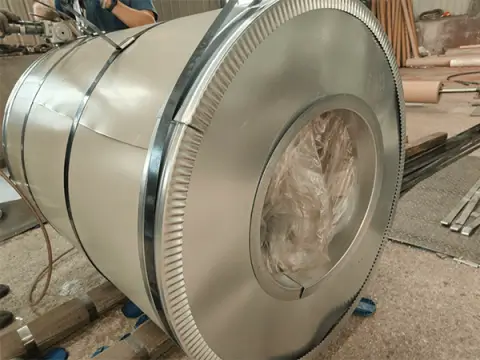

Steel Strips Package

WanZhi-GI-Coil-Packaging

Performance parameters of different grades of A653 steel

Quality Chemical Composition, Max % Yield Strength min, Ksi Tensile Strength min, Psi Elongation in 2″ min, %
C Min P S Cu
Commercial Quality (A526) 0.15 0.60 0.04 0.040 0.20   –   —
Lock Forming Quality(A527) 0.15 0.60 0.04 0.040 0.20   –  —
Drawing Quality (A528) 0.1 0.50 0.03 0.035   –   –  —
Drawing Quality Special Killed (A642) 0.1 0.50 0.03 0.035   –   –  —
Structural Quality (A 446) Grade 33(A) 0.20   – 0.40 0.04 0.20 33 45 20
Grade 37 (B) 0.20   – 0.10 0.04 0.20 37 52 18
Grade 40 ( c) 0.25   – 0.10 0.04 0.20 40 55 16
Grade 50 Class 1(D) 0.40   – 0.20 0.04 0.20 50 65 12
Class2 (D) 0.40   – 0.20 0.04 0.20 50   – 12
Class 3 (F) 0.50   – 0.04 0.04 0.20 50 70 12
Grade 80 (E) 0.20   – 0.04 0.04 0.20 80 82   –
High Strength low-alloy (A816) Grade 50 Type I 0.20 1.20   — 0.035 0.20 50 60 20
Type II 0.15 1.20   — 0.035 0.20 50 60 22
Grade 60 Type I 0.20 1.35   — 0.035 0.20 60 70 16
Type II 0.15 1.20   — 0.035 0.20 60 70 18
Grade 70 Type I 0.20 1.65   — 0.035 0.20 70 80 12
Type II 0.15 1.65   — 0.035 0.20 70 80 14
Grade 80 Type I 0.20 1.65   — 0.035 0.20 80 90 10
Type II 0.15 1.65   — 0.035 0.20 80 90 12
GI Coils for Sale

GI Coils for Sale

Wanzhi Packed A653 steel coils

 Applications of A653 steel

Due to this steel is excellent for Welding, Drilling, Machining, Shearing, and Forming. So that Its uses include:

  • Skin frames, truck beds;
  • Toolboxes, trash cans
  • Trays, drip trays;
  • Outdoor hardware;
  • Heating/cooling systems;
  • Electrical protection;
  • Decorative applications

Truck frames

Outdoor Decoration

Outdoor Grid

palletizers

garbage bin

Outdoor Hardware

A653 Steel golden supplier—Wanzhi Steel

Besides, A653 Steel is widely used in construction, roof tiles, ceilings, and other fields. It is favored for its good corrosion resistance and strength. In a word, it is a high-quality and versatile hot-dip galvanized steel.

Visit Wanzhi PPGI Coil Factory

Visit Wanzhi Steel Factory

Wanzhi factory supplies and stocks an extensive inventory of galvanized sheets and coils, especially ASTM A653 Hot Dipped Galvanized sheets, A653 Grade SS33, and ASTM A653 Grade 60 with four spangle surfaces.

Just let us know the size and quantity of your need, so we can help you find the right material for you!
