S350GD is a code used to identify hot-dip galvanized steel products that adhere to the EN 10346-2009 European standard. The “S” in the code refers to structural steel, while “350” indicates that the steel’s yield strength is at least 350 MPa. At Wanzhi Steel, we offer an extensive range of continuously hot-dip galvanized steel products, with the highest strength reaching 550MPa. Our range includes S250GD, S320GD, S450GD, S550GD, and more. The sizes range from 0.2 mm-3 mm*600 mm-1500 mm, with zinc coating of 60-275 g/㎡.
Our products are known for their high strength, strong corrosion resistance, and smooth surface finish. They are widely used in various applications such as building materials or structural parts, including roofing, wall panels, ventilation pipes, interior decoration, fencing, steel frames, and more. If you are interested in learning more about our hot-dip galvanized steel products, please feel free to contact us.
Galvanized Steel Plates

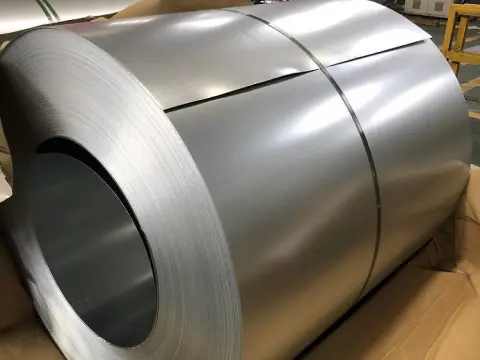

S350GD Galvanized Coils
S350GD is a code of hot dip galvanized steel, which is a type of structural steel that has a minimum yield strength of 350 MPa. It is often followed by “+Z” or “+AZ” and number, which indicates the thickness of the zinc or aluzinc coating. For instance, S350GD+Z275 refers to galvanized steel that has been coated with a zinc layer weighing 275 g/㎡, while S350GD+AZ150 refers to galvalume steel coated with an aluminum-zinc alloy weighing 1.5 ounces per square foot.
| C | Si | Mn | P | S |
| ≤0.2% | ≤0.6% | ≤1.7% | ≤0.1% | ≤0.045% |
| Item | S350GD |
| Rm – Tensile Strength | 400 MPa |
| Rp0.2 – 0.2% Yield Strength | 350 MPa |
| A – Min. elongation Lo = 80 mm | 16% |
Below is mechanical properties of S280GD for your reference.
| Item | S350GD |
| Rm – Tensile Strength | 360 MPa |
| Rp0.2 – 0.2% Yield Strength | 280 MPa |
| A – Min. elongation Lo = 80 mm | 18% |
| Europe | USA | Japan | Australia | China |
| EN | ASTM | JIS | AS | GB |
| S350GD | SS Grade 340 | SGC440 | G350 | S350GD |
Let’s learn the meaning of the codes first.
SGCC (JIS G3302): S- Steel; G- Galvanized; C- Cold rolled steel; C- for common uses; which is equivalent to DX51D+Z.
SGHC: S- Steel; G- Galvanized; H- Hot rolled steel; C- for common uses;
S350GD: S- Structural steel; 350- yield strength should be at least 350MPa; GD- Galvanized;
DX51D: D- low carbon steel; X – the rolling state of the substrate is not specified; 51 – steel grade for common uses; D- Galvanized.
Hot Dip Galvanizing Line
Galvanizing Process
Wanzhi Steel is a leading provider of high-quality hot-dip galvanized steel and galvalume steel coils and sheets. With two hot-dip galvanizing lines, we offer galvanized steel products in various strengths, including DX51D, S280GD, S550GD, and more, with zinc coating weights ranging from 30-275 g/㎡. Our team of experts is committed to providing our customers with high-quality products that meet their specific needs. If you are looking for reliable steel products, Wanzhi Steel is the right choice. Contact us today to request a quote or to learn more about our products and services.
