24 tons Galvalume Coils For Solomon Client

Good news! Salomon client bought 24tons of galvalume coils from Wanzhi Steel, which has been manufactured and sent to Solomon. The customer indicated that after receiving our aluminized zinc coil, he would place an additional PPGL order for one cabinet. Please enjoy the record of this cooperation project.

GL Coils Packaged

GL Coils Packaged

Galvalume Coils Shipped to Salomon

Galvalume Coils Shipped to Salomon

Order Details

Item Galvalume Coils
Size 0.45mm*940mm
Length 779m
Net weight 2595kg
Material DX51D+AZ150
Gross weight 2605kg
Product date May 14, 2023
Delivery date May 28, 2023
Product packaging Conventional Marine packaging

Project Production Process

Az150 Gl Metal Coil

Az150 Gl Metal Coil

Az150 GL Coils Factory Wholesale

Az150 GL Coils Factory Wholesale

GL steel coiling

GL steel coiling

Galvalume Coils Meaning

Galvalume steel coil is an important alloy material often used in our daily life. It is composed of aluminum zinc alloy structure, which is composed of 55% aluminum, 43% zinc and 2% silicon solidified at 600℃. The whole structure is composed of aluminum – iron – silicon – zinc, forming a dense quaternary junction crystal of an alloy.

Item Product data
Type Coil
Thickness 0.2mm-3mm
Width 600mm-1250mm
Coil weight 3-20 metric tons per coil
Alu-Zinc coating 30-275g/m²
Surface treatment Coated, chromated, oiled, anti-finger print
Package Standard export package

Quality Inspection

AZ50 Galvalume Steel

AZ50 Galvalume Steel

Thickness inspection

Thickness inspection

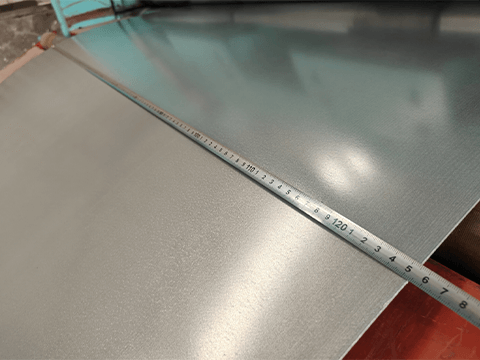

width measurement

width measurement

What are GL Coils Used For?

The surface of the galvalume coil is characteristic of smooth, flat and gorgeous star flowers, and the primary color is silver white. With strong corrosion resistance, heat resistance, reprocessability and electrical conductivity, widely used in construction, automobile, home appliances and other industries.
Buildings: roofs, walls, garages, sound walls, pipes and composite houses, etc.
Automobile: muffler, exhaust pipe, wiper accessories, fuel tank, truck box, etc.
Home appliances: refrigerator backboard, gas stove, air conditioner, electronic microwave oven, LCD frame, CRT explosion-proof belt, LED backlight, electric cabinet, etc.
Agricultural: pig house, chicken house, granary, greenhouse pipeline, etc.

Uses of GL Coils

Uses of GL Coils

Guide for Galvalume Using

● The use of alkaline medium under the condition of careful use of galvalume steel sheets.
● The roof of the galvalume building should have a certain slope, which is conducive to the drainage of water and avoid the deterioration of corrosion.
● Avoid direct contact with wet cement and wet wood, lead, copper, stone ink.
● Edge cutting plate should be used as far as possible to avoid cutting at the site.
● Processing, stacking should prevent moisture and high temperature caused by fingerprint film black.
● Galvalume steel sheets used for foaming bonding, small batch test should be carried out in the first use to prevent poor bonding performance.
● It is not recommended to wipe and clean the surface with alcohol solvent. If necessary, please conduct a sample test first to avoid damage to the surface skin

Product Packaging

Inner packaging

Inner packaging

outer packaging

outer packaging

What is the Difference Between Galvalume and Galvanized Steel

Service Life

Galvanized steel and aluminum-zinc alloys have different corrosion resistance properties, with the latter being superior. Under the same outdoor conditions, the service life of aluminum-zinc steel is over four times that of galvanized steel.

Coating Chemical Composition

Zinc Coating of GI Steel

A uniform layer of zinc is distributed across the surface, providing anodic protection for the substrate. The alternating corrosion of the zinc protects the substrate, and damage only occurs when the zinc is completely corroded.

GI Coils

GI Coils

GL Coils For Sale

GL Coils For Sale

Al-zinc coating of GL Steel
The coating is composed of 55% aluminum, 43.5% zinc, and small amounts of other elements. Overall Performance: Due to the reduced zinc content of the pure zinc coating, once the steel is cut, the edges are largely unprotected and will quickly rust. Therefore, cutting should be minimized. Apply anti-rust paint or zinc-rich paint after cutting to protect the edges.

Shipping and transportation

Loading on the truck

Loading on the truck

Loading on Truck

Loading on Truck

Loading into container

Loading into container

In Conclusion

In the color coating field, we have two color coating lines, over 150 types of printing molds, and an average monthly production capacity of 200,000 tons. In addition to galvanized products, we also offer colored steel coils.
If you are interested in GL steel coils or color-coated steel coils, please contact us.
