Zero Spangle Gi Sheet

Zero Spangle Gi Sheet is a galvanized steel sheet that has been specially processed. Its notable feature is that the zinc layer on the surface is uniformly crystallized, with almost no visible crystal patterns (spangles) commonly seen on galvanized sheets. The surface is smooth and uniform, which is both beautiful and functional. Wanzhi Steel can produce products with no, small, regular, or big spangles. We offer a variety of surface treatments and machining options. If you are interested, please contact us for details.

zero spangle gi sheet

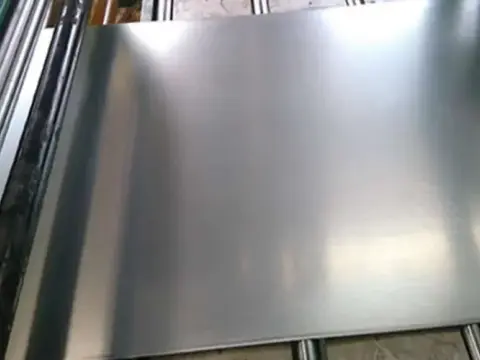

Zero spangle no zinc flower steel sheet

Zero Spangle Gi Sheet Specifications

Product name	Zero Spangle Gi Sheet
grade	DX51D, DX52D, DX53D, DX54D+Z, Q195, Q235, SGCC, SGHC, S320GD+Z, S350GD, A653, etc.
Standard	EN, JIS, GB, ASTM
Zinc Coating	30g – 275g/m2
Thickness	0.2 – 3.0mm
Width	600 – 1500 mm
MOQ	10 tons
Surface Structure	Zero Spangle
Surface Treatment	Anti-Finger printing, chromated, oiled/ non-oiled
Package	Standard export package
Processing Services	Cut to length, punching, press forming, etc.

close view of zero spangle sheet surface

Galvanized Coils Zero Spangle

What is zero spangle gi sheet?

Generally, there will be zinc spangles on the surface of hot-dip galvanized sheet. The zero-spangle Gi sheet is made by adding special alloy elements or adopting special cooling control during the hot-dip galvanizing process, so that the zinc layer forms very fine zinc spangles that are difficult to detect with the naked eye during the solidification process, thus presenting a relatively flat and smooth surface with almost no obvious zinc spangles.

Benefits of Zero Spangle Galvanized Sheet

Smooth, flake-free surface ensures a consistent, sophisticated look.
Excellent corrosion resistance, zinc coating ensures durability and corrosion resistance.
Uniform coating ensures consistent protection across the entire surface.
Ideal for applications requiring a painted, coated or polished finish.
High formability, easy to shape, bend and fabricate without cracking.
Designed to withstand harsh environmental conditions and mechanical stress.
Cost savings, reduced maintenance and replacement costs over time.
Environmentally friendly, recyclable and environmentally sustainable.

no spangle galvanized steel

Zero spangles

Commonly used hot-dip galvanizing coatings

International general standard (total weight on both sides, g/m²)

Z60: about 30 g/m² on one side (coating thickness about 4.3 μm/side). Expected service life 10-15 years.
Z80: about 40 g/m² on one side (thickness about 5.7 μm/side). Expected service life 15-20 years.
Z100: about 50 g/m² on one side (thickness about 7.1 μm/side). Expected service life 20-25 years.
Z120: ≥60 g/m² on one side (thickness ≥8.6 μm/side). Expected service life 25-30 years.

According to ASTM A653 (US standard)

G60 (60 g/m²), G90 (90 g/m²), G120 (120 g/m²).

According to JIS G3302 (Japanese standard)

Z12 (120 g/m²), Z18 (180 g/m²) (number represents the total weight of both sides × 10).

According to EN 10346 (European standard)

Z100 (100 g/m²), Z200 (200 g/m²), Z275 (275 g/m²).

Surface treatment

The production process of the zero-spangle galvanized corrugated sheet at Wanzhi Steel Factory.

Orange peel surface treatment and packaging at Wanzhi Steel Factory.

In addition, we also provide embossed, pattern printed, color coated, surface treatment and slitting, perforated, and other machining.

Applications of Zero Spangle Galvanized Steel Sheet

Cross-industry applications

Automotive Industry: Body panels, chassis components and other parts that require a smooth, paintable surface.
Construction: Roofs, partitions, wall cladding and structural components.
Household appliances: Refrigerators, washing machines and other appliances that require a uniform surface finish.
Electrical enclosures: Electrical cabinet enclosures, switch cabinets and other parts.
Other applications: Furniture manufacturing, hardware products, machinery manufacturing, container manufacturing and other fields.

Typical uses of different coatings

Z60/Z80

Architecture: light roof panels, walls, and cable trays.
Home appliances: washing machine inner drum, air conditioner shell (subsequent spraying is required).

Z100/Z120

Infrastructure: highway guardrails, transmission towers, containers.
Industry: chemical plant pipelines, agricultural greenhouse frames.

Z200 and above

Marine engineering: port facilities, ship components.
Heavy corrosion areas: refineries, sewage treatment equipment.

Home Appliance Usage

Used For Automobile

Corrugated Residential Fence

Selection suggestions

Z60 can be selected for dry indoor environments.
Z80-Z100 is selected for general outdoor use.
Z120 or above or aluminum zinc plating (GL) is required for high salt spray, acid, and alkali areas.
For welding/stamping, too thick a coating may affect the process, and ≤Z100 is recommended.
If painting is required, select a coating with surface treatment (such as passivation).

FAQ about Zero Spangle Gi Sheet

Q1: What is the difference between Zero Spangle GI Sheet and Regular GI Sheet?

A: Zero Spangle GI Sheet has a smooth, spangle-free surface due to controlled cooling during the galvanizing process, while regular GI Sheet has a visible crystalline pattern.

Recommended Reading: What Is Spangle on Galvanized Steel?

Q2: Can Zero Spangle GI Sheet be painted?

A: Yes, its smooth surface makes it an excellent base for painting and coating.

Q3: Is Zero Spangle GI Sheet suitable for outdoor use?

A: Of course!Its excellent corrosion resistance makes it ideal for outdoor applications.

Q4: Which industries use Zero Spangle Galvanized Sheet?

A: It is widely used in the automotive, construction, home appliance and electrical industries.

Q5: Can I get custom sizes?

A: Yes, we offer customizable sizes to meet your specific project requirements.
