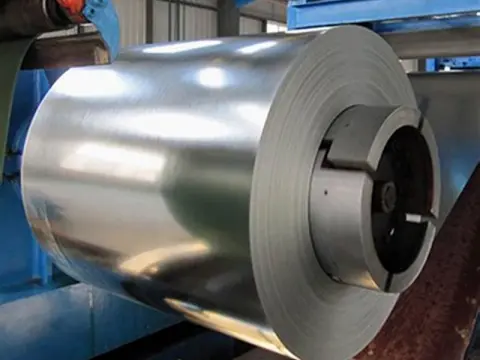

Tin Plated Steel

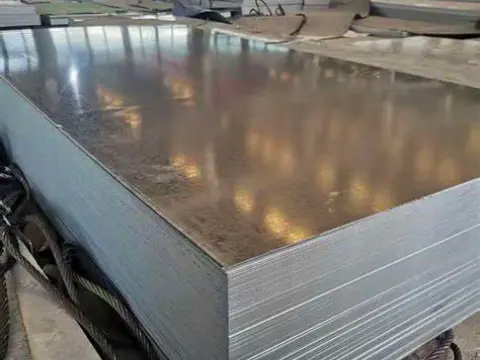

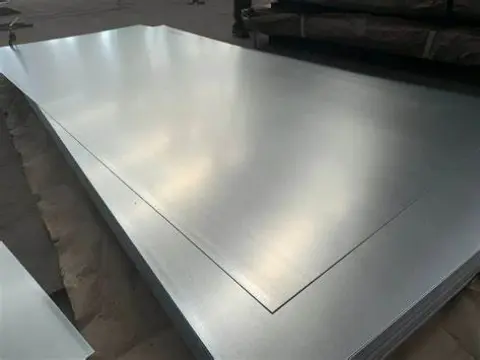

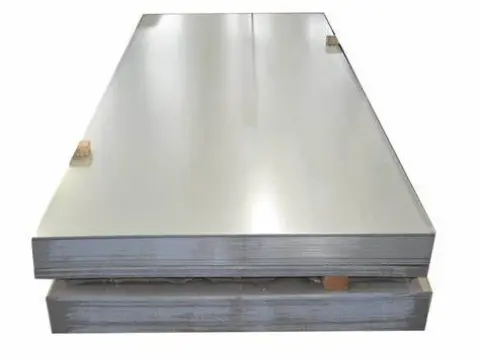

Tin-plated steel is a metal material widely used in the food and packaging industries. It combines the strength of steel with the corrosion resistance and weldability of tin. Tin-plated cold-rolled annealed steel has a beautiful luster. Wanzhi Steel specializes in the production of tin-plated steel sheets, coils, and strips of different widths, and provides machining services. The length can be customized. If you have special requirements, please send them to us.

Tin Plated Steel Specification

Item	Tin-plated Steel
Thickness	0.14 – 0.8mm
Width	≤1225mm
Length	Customizable

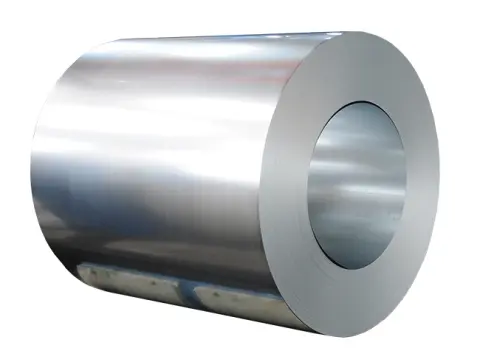

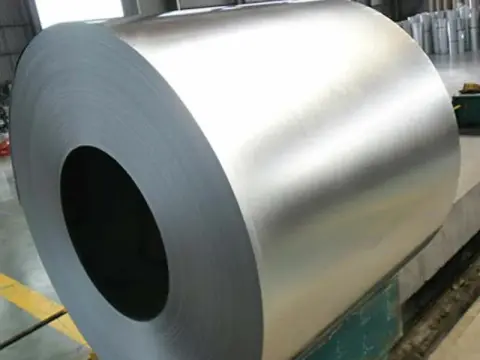

Type	Coils, Sheets, Strips
Tin coating	1.1/1.1,2.0/2.0,2.8/2.8,5.6/5.6,8.4/8.4,11.2/11.2 (g/m2)
Hardness	T1.5, T2, T2.5, T3, T3.5, T4, T5
Surface Treatment and Condition	Passivation, oiling; glossy (Stone/Bright), matte finish
MOQ	25 tons
Place of Origin	Shandong, China
Packing	Standard Sea-worthy Packing
Payment term	TT 30% Advance + 70% Balance

What is tin-plated steel?

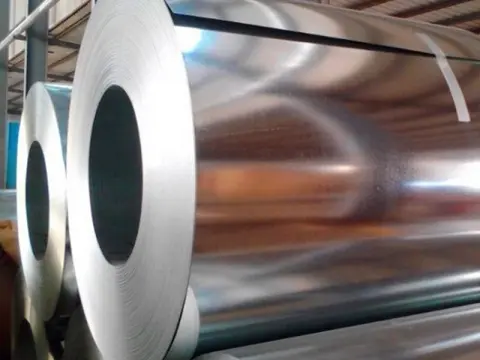

Tin-plated steel, commonly known as electrolytic tinplate or tinplate, is a composite metal material manufactured by applying a uniform layer of tin to the surface of low-carbon cold-rolled steel sheet through continuous electroplating, followed by post-treatment processes such as annealing, passivation, and oil coating. It possesses excellent processing properties—including formability and weldability—and serves as a core foundational material in metal packaging and precision manufacturing.

Performance characteristics

• Excellent workability: High ductility combined with the tin coating’s inherent properties as a solid lubricant enables complex forming processes like deep drawing, stretching, and bending without cracking, while also delivering outstanding weldability.
• Corrosion resistance: The tin coating acts as a cathodic protective layer, shielding the steel substrate from contact with water, air, and acidic/alkaline media, thereby slowing the corrosion rate of the base material.
• Cost-Performance Balance: Compared to stainless steel and aluminum foil, tinplate offers lower costs while meeting corrosion resistance and safety requirements.
• Safe, Non-Toxic, and Hygienic: The chemically stable tin coating prevents contamination of contents, making it an internationally recognized food-safe packaging material.

What is tin plating used for?

Food & Beverage Packaging (Core Applications)

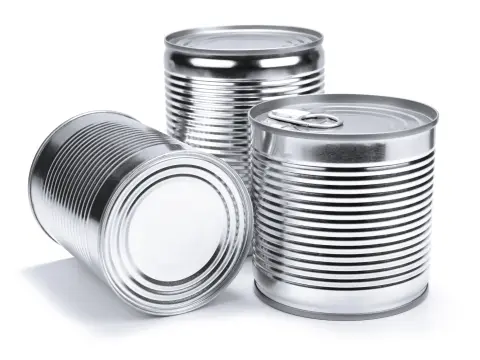

• Conventional food cans: Canned meats, fruits, vegetables, etc.
• Beverage containers: Carbonated drink cans, juice cans, etc.
• Portable packaging: Milk powder tins, tea tins, seasoning jars, etc.

Chemical & Industrial Packaging

• Chemical containers: Paint cans, ink cans, adhesive containers, etc.
• Oil packaging: Lubricant drums, oil filter housings, etc.
• Aerosol Cans: Insecticide and air freshener cans, etc.

Electronics and Precision Manufacturing

• Electromagnetic Shielding: Communication equipment shielding covers, chip carriers;
• Precision Components: Relay housings, sensor assemblies.

Automotive and Home Appliance Sector

• Automotive Components: Oil filter housings, heat exchanger parts, gaskets and seals;
• Home Appliance Accessories: Oven liners, bread maker trays, cookie molds.

Production of tinplate

Production steps

• Selection of steel: select suitable steel as the substrate and perform pretreatment such as cleaning and rust removal.

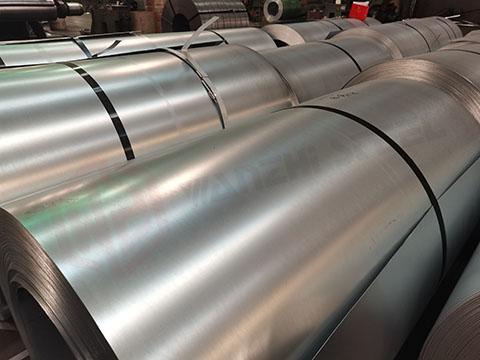

• Tin plating: Similar to the galvanizing process, put the cleaned steel sheet into the tinning tank, and form a layer of tin on the surface of the steel by electroplating or hot-dip plating. This step can control the thickness of the coating. You can contact Wanzhi Steel to customize the coating.
• Post-processing: Cool, solidify, clean, trim, and other post-processing steps of the tin-plated steel to ensure the uniformity and integrity of the tin coating.

What is the difference between tinplate and TFS?

TFS is an electrolytic chrome-plated steel sheet with excellent paintability and paint adhesion. Tinplate (ETP) is a tin-plated thin steel sheet with excellent weldability and corrosion resistance. The coating composition of the two is different, so the characteristics are also different.

Why Tin Plating?

• Tin is a soft, silver-white metal that’s also very flexible. Due to this higher flexibility, tin can be molded and stretched in a wide variety of shapes, all the while remaining whole and without cracking.
• What’s more, tin is also non-toxic, corrosion-resistant, and highly conductive.
• Tin plating can be applied to several different materials, like regular steel, stainless steel, copper, brass, aluminum, and zinc die cast.
• Additionally, tin is also used by industrial manufacturers as it provides several significant benefits.

When you take all of these attributes and applications into account, it becomes clear why tin plating is very prevalent in industries like electronics, shipping, hardware, solar, and even food processing.

Precautions for tin-plated steel

1. When using tin-plated steel, care should be taken to avoid direct contact with corrosive substances such as strong acids and strong alkalis to avoid damaging the tin-plated layer.

2. The welding process of tin-plated steel should follow the corresponding welding process specifications to ensure the welding quality and the integrity of the tin-plated layer.

3. When cleaning tin-plated steel plates, do not use irritating cleaning agents, and use mild cleaning agents.

4. In addition to not being able to contact strong acids and alkalis, be careful not to come into direct contact with other metals in a humid environment.

Tin Plated Steel For Sale – Wanzhi Steel

Tinplate is a versatile metal material with outstanding performance. Wanzhi Steel has 15 years of export experience. Located in Shandong Province, China, our factory specializes in producing various metal-coated steels supplied in sheet, coil, and strip forms. In addition to tinplate coils, we offer:

• Galvanized steel coils
• Galvalume steel coils
• ZAM steel

We have a very mature multilingual team and provide slitting, embossing, color coating, perforation, and other services for customers’ products. With high-quality products and services, our products have been sold to more than 120 countries around the world. Welcome to contact us for customization.
