Metal profiled sheets are a widely used building material known for their durability, cost-effectiveness and aesthetics. Due to their high strength and light weight, these sheets are commonly used in roofing, cladding and structural applications, with a wide variety of materials and shapes. Wanzhi Steel is a professional Metal Profiled Sheet manufacturer, stocking galvanized metal profiled sheets in materials such as Z275, DX51D, DX52D, DX53D, DX54D, color-coated metal profiled sheets, pre-coated metal profiled sheets, and waveforms and lengths can be produced as required. You are welcome to contact us for more information.
Metal profiled sheets, also known as corrugated metal sheets or profile steel sheets, are thin metal sheets that have been specially formed to enhance strength and rigidity. Coated sheets or plated sheets are processed into various waveforms by roller cold bending. They are lightweight, high-strength, waterproof and earthquake-resistant, and easy to construct, and are widely used in many fields such as construction, industry, and agriculture.
Production Video
Metal Profiled Sheet Feature
High strength: It has high strength while maintaining a certain flexibility. It can withstand large wind loads, snow loads and its own weight to ensure the stability of the building.
Good rigidity: The corrugated structure formed by the profile increases the section inertia moment of the plate, thereby improving the rigidity of the plate. Maintain good shape stability.
Light weight: Compared with traditional building materials, such as asbestos tiles, solid bricks, etc., the weight of the profiled metal sheet is much lighter. It is convenient for transportation and hoisting.
Convenient installation: It adopts standardized production and uniform size specifications. Bolt connection, welding or bite connection can be used during installation, which has fast construction speed and short construction period.
Beautiful: It can be pressed into various shapes and specifications of waveforms according to different design requirements. The color-coated profiled sheet has a rich appearance effect.
Diverse functions: It can not only serve as the enclosure structure of the building, but also has good waterproof, fireproof, sound insulation, heat insulation and other functions.
Economical: Due to the simple production process of the profiled metal sheet, high utilization rate of raw materials, fast construction speed and low labor cost, the comprehensive cost is low.

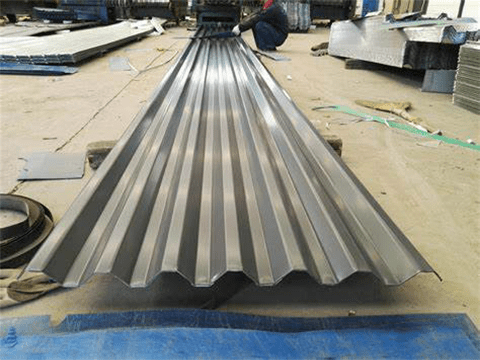

4×8 3mm Thick Metal Profiled Sheet

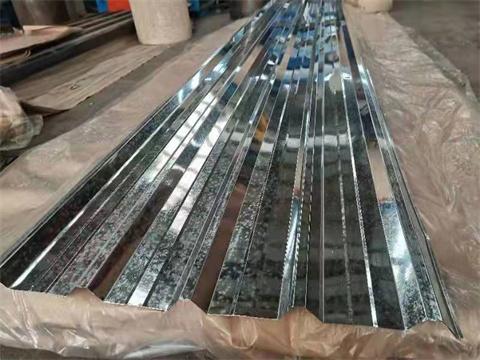

Dx53D Z150 24 Ga Metal Profiled Plate
Types of Metal Profiled Sheets
Classification by material
Galvanized steel profiled sheet: The base material is galvanized steel sheet, hot-dip galvanized or electro-galvanized. It is the most commonly used economical corrugated sheet, and the surface galvanized layer provides corrosion resistance.
Alu-zinc steel profiled sheet: The base material is galvalume steel sheet, such as the common AZ150, which has better corrosion resistance than ordinary galvanized sheet. Suitable for high humidity and coastal areas.
Aluminum profiled sheet: The base material is aluminum alloy sheet, commonly 3003, 5052, 5005, etc., which is light in weight and corrosion-resistant, and is often used in high-end buildings.
Stainless steel profiled sheet: 304, 201 stainless steel base material, extremely corrosion-resistant, mostly used in chemical and food processing.

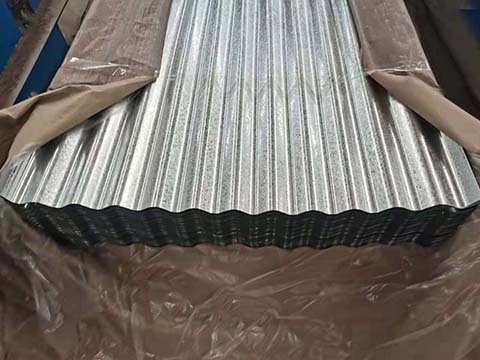

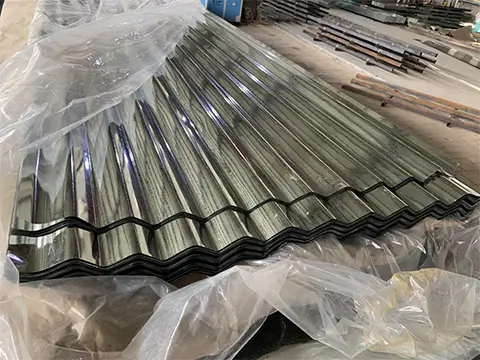

Galvanized steel profiled sheet

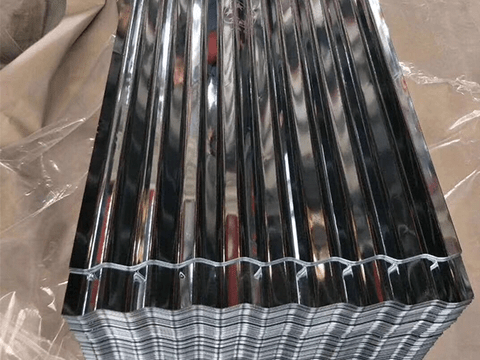

Stainless steel corrugated plate

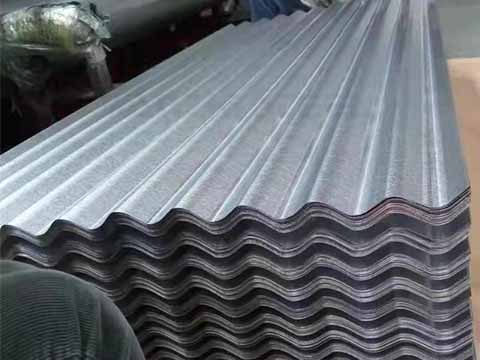

Galvalume profiled sheet
Classification by surface treatment
Hot-dip galvanized corrugated sheet: The steel sheet is hot-dip galvanized, with a thick coating, suitable for general anti-corrosion environments.
Color-coated steel corrugated sheet: CR, GI, GL surface coated with organic coating (such as polyester, fluorocarbon paint), rich colors, stronger weather resistance, used for building appearance.
PPGI corrugated sheet/PPGL profiled sheet: specifically refers to the application of organic coatings on GI and GL substrates, which are UV-resistant and anti-fading, and are used in indoor and outdoor environments such as buildings and homes, with a long service life.

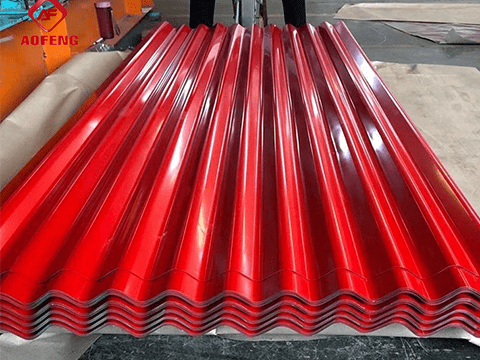

Color Coated profiled Metal Roofing

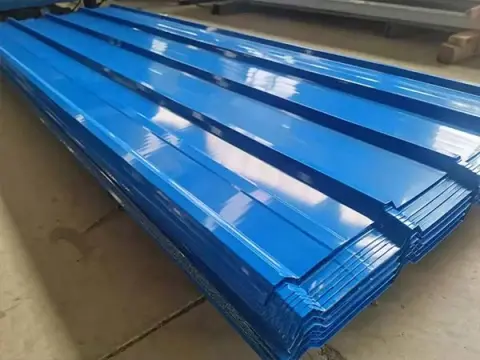

DX51D PPGI Profiled Sheet
Green PPGI Roofing Sheet
Classification by connection method
Overlapping corrugated sheet: The edges of the sheets are directly overlapped and fixed with self-tapping screws or rivets, which is simple to construct.
Concealed buckle corrugated sheet: The edges are buckled, and the screws are hidden in the joints, which has a neat appearance and good waterproof performance.
Locking edge corrugated sheet: The edges of the sheets are tightly connected through a mechanical locking process to form an overall waterproof system without exposed screws.
Classification by cross-sectional shape
Wave (corrugated) corrugated sheet: The cross section is continuous wave-shaped, the wave height and wave distance can be customized, the bending strength is high, and the drainage performance is good.
Trapezoidal corrugated sheet: straight rib or oblique rib cross section, strong bearing capacity, regular sheet shape, easy to install and splice.
V-shaped corrugated sheet: V-shaped groove cross section, simple and sharp lines, modern feel, some models can be matched with concealed buckle design.

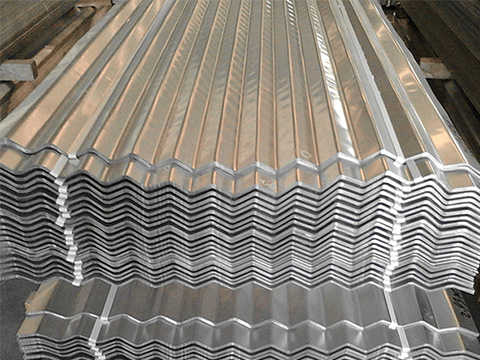

V-shaped metal profiled plate

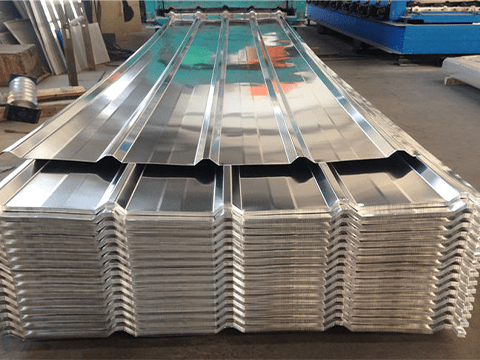

Trapezoidal metal profiled sheet

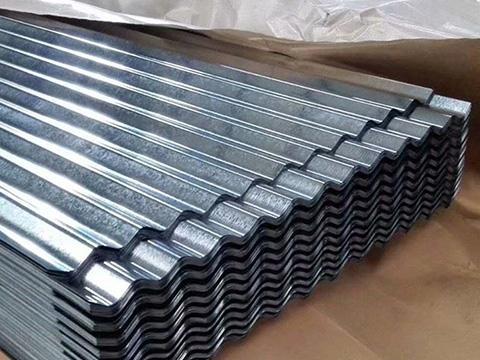

Corrugated metal profiled sheet
Applications
Construction Engineering
Roofing System: Roof covering of large-span buildings such as factories, warehouses, gymnasiums, and airports, taking advantage of its fast drainage and strong load-bearing capacity.
Wall enclosure: Exterior wall decoration of buildings such as commercial complexes and office buildings, embossed, perforated or colored panels can be selected to enhance aesthetics.
Composite wall panels: Sandwich panels formed by combining with core materials such as rock wool and polyurethane, used in cold storage, clean workshops and other scenes with high requirements for insulation and fire protection.
Indoor ceiling: Ceiling decoration of public places such as shopping malls and stations, perforated corrugated panels can also have sound absorption functions to enhance the comfort of space.
Industry and warehousing
Factory buildings and workshops: dust and corrosion protection of workshop roofs and exterior walls, equipment protection covers.
Warehousing and logistics: waterproofing of roofs and insulation of walls of large warehouses, sandwich corrugated boards can reduce the impact of external temperature. Structural support above rolling shutter doors.
Corrugated Residential Fence
Galvanized corrugated factory roof
White corrugated board
Infrastructure and public facilities
Transportation field: Soundproof walls on both sides of highways and railways, billboards and signs.
Canopies and platforms: Roofs at the entrances and exits of subway stations and bus stations, canopies for car charging piles.
Municipal and park: Corrosion-resistant galvanized or aluminum-zinc corrugated panels are used in sewage and garbage treatment plants, and roofs and skins of park pavilions and pergolas. Support for outdoor seats and flower boxes.
Temporary buildings: quick construction of construction site dormitories and disaster relief housing, taking advantage of its lightness and easy installation.
Agriculture and breeding
Agricultural greenhouses and sheds: ventilation walls on the top and sides of greenhouses. Insulation outer panels for planting sheds.
Livestock and poultry houses: rain protection for roofs and wind protection for walls of breeding farms. The board type can be designed as a smooth surface that is easy to clean, and ventilation windows can be used to improve the breeding environment.
Wall cladding
Car Body
Billboard
Choose a reliable metal profiled sheet manufacturer
When choosing a supplier, choose a manufacturer you can trust for quality, durability, and cost-effectiveness.
Why choose Wanzhi Steel?
Well-equipped: Automated roll forming machines ensure accurate profiles and highly consistent dimensions.
Quality Control: Strict selection of high-quality steel, corrosion-resistant coatings, mature processes, and full quality tracking.
Customization options: Ability to produce customized profiles, colors and thicknesses according to your project needs.
International Certifications: Quality standards are guaranteed through ISO, ASTM, EN and other industry certifications.
Strong R&D capabilities: Continuous innovation in coatings, fire protection and technology to meet emerging requirements.
Global export experience: Extensive experience in supplying products to more than 120 countries including Turkey, Russia, India, Iran, etc.
