DC01 Galvanized Steel Coil

DC01 galvanized steel coil utilizes high-quality, low-carbon, cold-rolled steel sheets through an advanced hot-dip galvanizing process. This combination of excellent formability and weather resistance makes it an ideal material for automotive parts, appliance housings, and architectural decoration. As a professional steel supplier, Wanzhi Steel leverages modern production lines and rigorous quality control systems to provide a stable and reliable supply of DC01 galvanized steel coil products and technical solutions to customers worldwide. Custom sizes and zinc coatings are available. Please contact us for pricing.

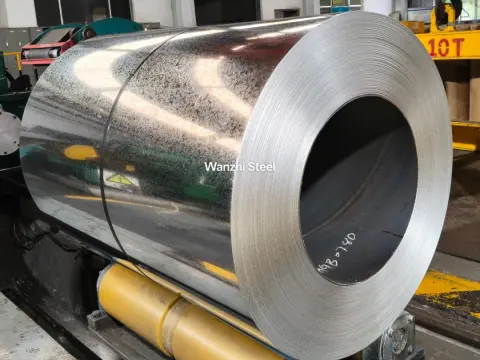

DC01 Zinc Coated Coils for Roofing Sheet

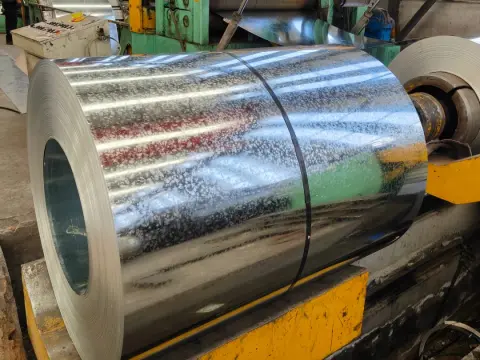

DC01 galvanized coil with zinc flowers

Specification

Item	DC01 galvanized steel coil
Place of Origin	Hebei, China
Standard	AISI, ASTM, DIN, JIS, GB, EN
Substrate	low-carbon, cold-rolled substrate
Thickness	0.12mm-2mm
Width	600mm-2,000mm
Coil Weight	3-8 tons (can be customized)
Surface Structure	Zero spangles, Small spangles, Regular spangles, Big spangles
Zinc Layer Thickness	30g/㎡-275g/㎡ (Z275/G90)
Color	Silver
Sample	Free Available
Payment term	TT 30% Advance + 70% Balance
Price Item	FOB, CIF, EXW, CFR, etc
Packing	Standard export packaging
Certification	ISO 9001, SGS, ABS, BV
MOQ	5 tons

Wanzhi-Spangles

Character interpretation

DC01: A standard grade for cold-rolled low-carbon steel sheet and strip, primarily defined by German or EU standards. It is equivalent to the cold-rolled low-carbon steel sheet and strip specified in the national standard GB/T 5213-2008.
Galvanized steel coil: A steel coil coated with zinc to prevent corrosion, which can be cut and processed as needed.

Production Video

Key Features

Stable Base Material

DC01 cold-rolled low-carbon steel has low hardness and good ductility, providing an excellent foundation for processing and galvanizing.

Excellent Corrosion Resistance

The zinc layer protects the base material through a “sacrificial anode,” forming a dense protective film that slows down corrosion. Wanzhi Steel can customize the zinc layer thickness.

Outstanding Processability

Excellent cold working properties allow for easy stamping and bending, with low yield strength and high elongation, making it less susceptible to cracking during processing.

Excellent Surface Quality

After hot-dip galvanizing, the surface exhibits a spangled or uniform silver-gray color with excellent gloss, eliminating the need for additional coating. Can be used directly or for subsequent painting.

Low Cost

Lower cost than stainless steel, offering a high cost-performance ratio and flexible specifications to meet the feed requirements of different production lines, suitable for applications requiring moderate corrosion protection.

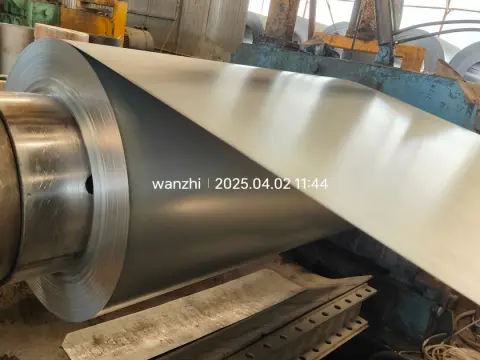

DC01 cold rolled low carbon steel coil

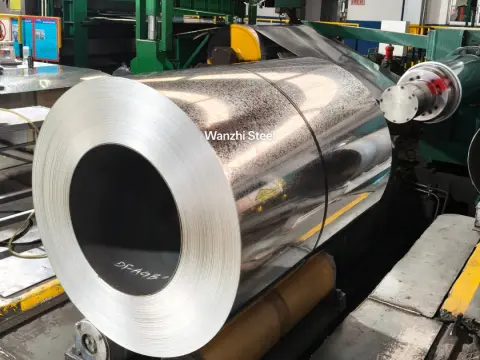

DC01 Hot Dip Galvanized Steel Coil Manufacturer

Applications

Construction

Used as a raw material for lightweight steel keels, rolling shutters, ventilation ducts, and other applications, it can withstand humid outdoor environments and meet complex design requirements.

Home Appliance Industry

As housings or internal structural components for appliances such as refrigerators, washing machines, air conditioners, and microwave ovens, its smooth surface reduces the need for painting, and its excellent formability makes it suitable for mass production.

Automotive Parts Manufacturing

Used for non-load-bearing components such as door linings and small chassis parts, its low hardness facilitates stamping, and its zinc coating protects against corrosion in humid environments, achieving a balance between performance and cost.

Daily Goods Manufacturing

Used for shelving, filing cabinets, metal boxes, and more, its flat surface enhances the appearance and quality, accommodating diverse designs while also meeting durability requirements.

Industrial Equipment

It can be used to manufacture equipment housings, guardrails, pipe supports, and more. Its corrosion resistance adapts to the complex environment of factory workshops, while offering low installation and maintenance costs.

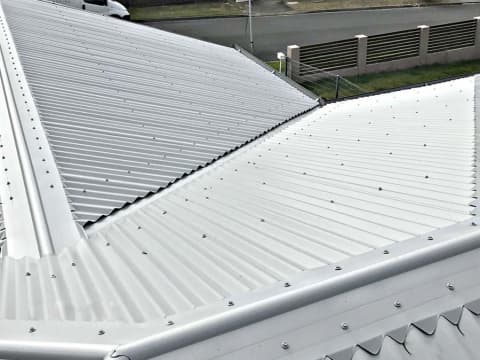

For building roofs

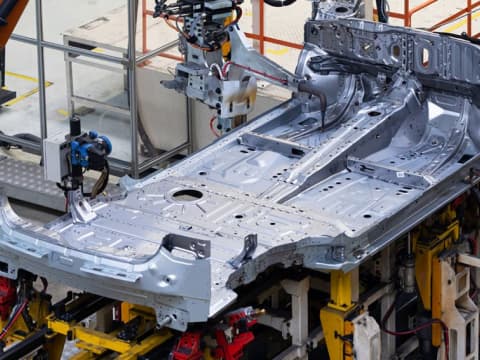

For automobile chassis

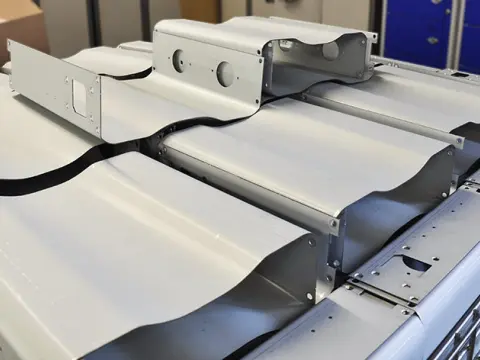

Home appliance casing processing

Recommended zinc coating for different scenarios

Construction: Z180-Z275. For roofs/walls/light steel structures, high zinc coating provides long-term corrosion protection, with a lifespan of 20 years or more.
Appliance housings: Z60-Z120. Such as refrigerators/air conditioners/washing machines. Low corrosion risk in indoor environments. Appliance lifespans are typically 10-15 years.
Automotive parts: Z90-Z150. Interior trim/non-load-bearing structural parts meet the manufacturer’s 5-8 year corrosion protection requirements. This zinc coating does not interfere with resistance welding.
Cable trays/electrical cabinets: Z120-Z200. Industrial environments present a risk of electrochemical corrosion.
Agricultural equipment: Z200-Z350. For granaries/farm machinery housings exposed to corrosive media such as fertilizers and organic acids, zinc-aluminum-magnesium plating with passivation treatment can be used to further enhance corrosion resistance.
Color-coated substrate: Z60-Z100, which needs to be coated or painted later. Too thick a zinc layer can easily cause the coating to fall off, and high coating uniformity is required.

Weight Calculation Formula

Theoretical Weight Calculation Formula

Weight = [π × (Steel Coil Outer Diameter² – Steel Coil Inner Diameter²) × Steel Coil Width × 7.85g/cm³]/4

Quick Estimation Formula

Approximate Weight (Ton) = 0.00617 × (Steel Coil Outer Diameter² – Steel Coil Inner Diameter²) × Steel Coil Width

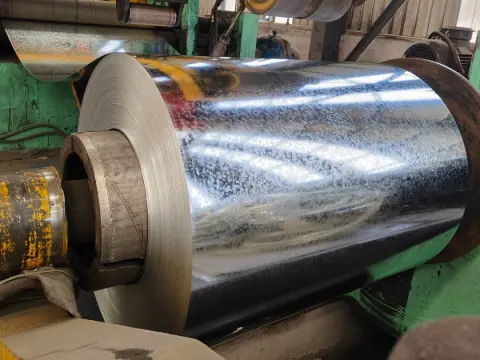

Galvanized Steel Coil Wholesale Price

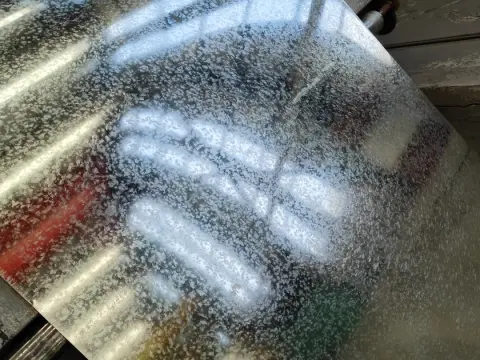

Clean and smooth surface

Other commonly used substrates

DC03: Higher elongation than DC01, suitable for deep drawing, used in automotive parts and complex stampings.
DC04: Extra deep drawing grade, excellent ductility, used for precision stamping (such as fuel tanks and electrical housings).
DC05: Extra deep drawing grade, low yield strength, used for difficult-to-form parts (such as door inner panels and aircraft components).
A1008: General-purpose low-carbon steel, moderate strength, used in construction, furniture, and general stampings.
A1011: Structural steel, high strength, used in shelving and steel structures.
A653 (SS Grade): Specialized galvanized substrates, such as SS33/40/50, can be used for color-coated substrates, roofing, and wall coverings.
SPCC: Ordinary cold-rolled steel, highly versatile, used in electrical housings and hardware.
SPCD: Stamping grade, superior ductility to SPCC, used in automotive parts and containers.
SPCE: Deep drawing grade, excellent formability, used for precision stampings, such as battery cases and watch parts.
St12: Translated from the German standard, medium-to-low strength, easy to weld, used for containers and general structural parts.
HC260/300: Low-alloy high-strength steel (HSLA), used for lightweight automotive parts.
DP600: Dual-phase steel, high strength and high plasticity, collision resistance, used for automotive anti-collision beams and safety components.
TRIP Steel: Ultra-high elongation, good energy absorption, used for new energy vehicle structural parts.

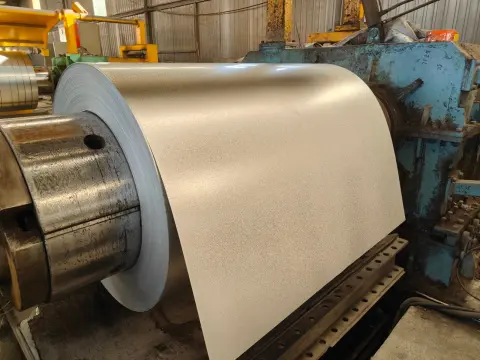

DC01 zinc-aluminum coated coil

Annealed SPCC Coils

Factory Quality Inspection

To ensure that DC01 galvanized steel coils meet international quality standards, Wanzhi Steel implements the following rigorous quality inspection procedures: Checking the chemical composition of DC01 cold-rolled steel coils, zinc ingot testing, zinc layer weight, uniformity, and adhesion, and ensuring the absence of surface defects, zinc slag, and scratches. Mechanical tests include tensile testing, hardness testing, and cupping testing. Salt spray testing and damp heat testing are also performed for corrosion resistance. After assembly, dimensional and visual inspections are conducted, including thickness, width, coil weight, and the absence of zinc particles, zinc dust, roller marks, and edge burrs and cracks.

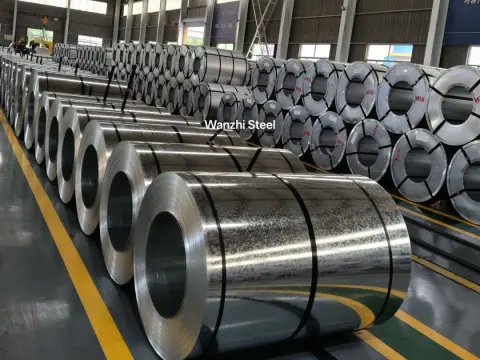

DC01 galvanized coil in stock

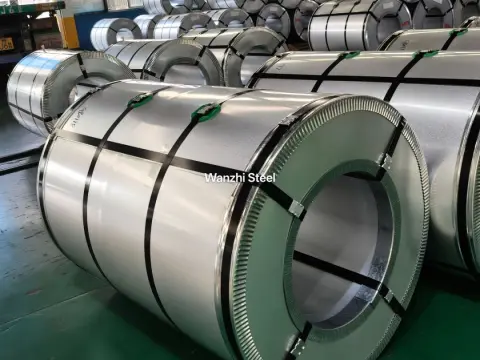

DC01 zinc coated coil export packaging
