1mm Aluminium Strip

1mm aluminum strip refers to flat rolled aluminum products with a standard thickness of 1mm. Due to its light weight, corrosion resistance, and excellent machinability, it is widely used in various industries such as electronics and construction. Wanzhi Steel offers 1mm aluminum strips with different width ranges and accepts customization. We provide services such as longitudinal cutting, coating, embossing, and perforation with fast delivery. Welcome to contact us.

30cm wide aluminum strip

70mm wide aluminum strip 5005

1mm Aluminium Strip Specification

Item	1mm Aluminium Strip
Place of origin	Shandong, China
Material	1000~8000series
Al (Min)	99%
Thickness	1.0mm
Processing Service	Bending, Decoiling, Welding, Punching, Cutting
Length	Customer’s Requirement
Shape	Coil Roll Strip
Color	Silver Aluminum Color
Application	Industry,Decoration,Building,Industry
Delivery Time	15-21 days
Standard	ASTM AISI JIS DIN GB BS
MOQ	5 Tons
Payment term	30%TT+70% Balance

What is 1mm aluminum strip?

Aluminum strips are usually 10mm to 1500mm wide and fixed at 1mm thick. They are made from various grades of aluminum (1100, 1050, 2024, 5052, 5005) through hot rolling, cold rolling, and annealing. They have excellent performance and a wide range of uses.

5052 H36 Aluminum Checkered Plate

100mm width Aluminum Strip for Sale

Different grades of 1mm aluminum strip

1050, 1060, 1100: Aluminum content ≥ 99.5%, almost pure aluminum, excellent corrosion resistance, elongation ≥ 30%, very soft.
2024, 2017: Contains copper and magnesium, good fatigue resistance, poor weldability, high strength, weak corrosion resistance.
3003, 3004: Contains manganese and magnesium, medium strength, good deep stamping performance, excellent corrosion resistance.
5052, 5083: Contains magnesium and chromium, marine-grade corrosion resistance, medium to high strength, weldable, and cannot be heat-treated and strengthened.
6061, 6063: Contains magnesium and silicon, with balanced strength + formability + corrosion resistance, can be heat-treated and strengthened, and is easy to extrude.
7075, 7005: Contains zinc, magnesium, and copper, ultra-high strength, sensitive to stress corrosion, and good machining performance.
8011, 8079: Contains iron and silicon, high ductility, the thinnest foil is 0.006mm, and high temperature resistance up to 300℃.

3003 1mm Diamond Embossed Aluminum strip

1mm thick aluminum corrugated sheet

Physical properties

Density: 2.7 g/cm³ (lighter than steel or copper).
Tensile strength: 80–300 MPa (depending on alloy grade).
Electrical conductivity: 35–50% IACS (pure aluminum).
Thermal conductivity: 120–210 W/m·K, suitable for heat exchangers.
Elongation (≥ %): 2-35.

Main characteristics of 1mm aluminum strip

① Lightweight: A relatively light metal, 34.6% of the density of steel and more than 30% lighter than copper. Easy to install and use.

② Corrosion resistance: Naturally forms a protective aluminum oxide layer. Suitable for humid, marine, or chemically exposed environments.

③ Excellent conductivity: Preferred in the fields of power, optical fiber, and electrical.

④ Formability and weldability: Can be easily bent, stamped, or deep drawn. Compatible with TIG, MIG, and spot welding.

⑤ Recyclability: 100% recyclable without quality loss (environmentally friendly).

High quality 3034 aluminum strip coil

Color coated aluminum strip

Common Applications

Application Areas

Electronics: battery casings, capacitor foils, LED heat sinks.
Building: roofs, wall cladding, HVAC ducts.
Automotive: radiator fins, trim, electric vehicle battery casings.
Packaging: food containers, pharmaceutical foils, labels.
Industrial: transformer windings, gaskets, and machinery shields.

Recommended applications for each level

1050, 1060, 1100: food packaging foil, cables, chemical tank linings.
2024, 2017: aircraft skins, spacecraft components, high-strength parts.
3003, 3004: HVAC, fuel tanks, beverage tanks (3004), building decorative panels, kitchenware, heat sinks.
5052, 5083: ship decks, automobile fuel tanks, pressure vessels, offshore platforms.
6061, 6063: doors, windows, and curtain walls (6063-T5), bicycle racks, automobile chassis (6061-T6).
7075, 7005: aircraft landing gear, missile shells, golf club heads.
8011, 8079: lithium battery aluminum foil (8011-O state), pharmaceutical blister packaging, and label plates.

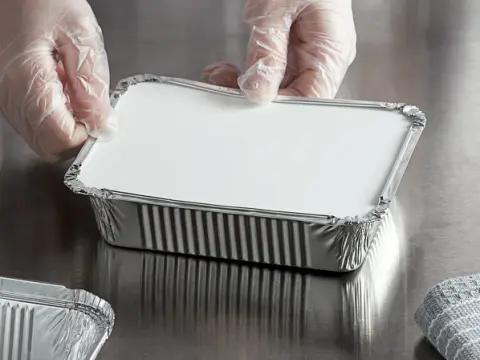

Food Packaging

Door frame

Perforated aluminum decorative panels

Manufacturing process

1: Casting: Molten aluminum is cast into slabs (ingots).

2: Hot rolling: Slabs are heated to 500°C and rolled to medium thickness.

3: Cold rolling: Precision rolling at room temperature to a thickness of 1mm (tolerance ±0.02mm).

4: Annealing: Heat treatment (250-400°C) to eliminate stress and improve ductility.

5: Slitting: Trimming to custom widths (e.g., 50mm, 200mm).

6: Surface treatment: Anodizing, polishing,g or coating based on special needs.

Aluminum strip with a width of 10cm

Price

Determined by aluminum grade, surface treatment, strip width, order quantity, and market price.

1. Alloy type: 5xxx series costs 10-15% more than 1xxx series.

2. Surface treatment: Anodizing adds $0.5-1.5 per kg.

Note: Bulk orders (>50 tons) are usually eligible for a 5–10% discount.

Inner Packaging

Outer Packaging

Aluminum strips shipped to Russia

Wanzhi Steel-1mm Aluminum Strip Gold Supplier

Full size supply: 10mm – 1250mm width, customizable.
Full grades: can produce full grades of 1mm aluminum strip, from 1050-6061, etc.
Machining: slitting, checking, embossing, cutting, and other processing.
Quality assurance: ISO 9001, SGS, ROHS certification.
QC test: full spectrum laboratory (thickness, hardness, composition).
Fast delivery: 15-20 days for standard orders.
OEM/ODM support: customized slitting, punching, and packaging.
Global supply: exported to more than 120 countries in the United States, Europe, the Middle East, and Southeast Asia.

1mm aluminum strip is lightweight, corrosion-resistant, and adaptable, making it a cost-effective metal material in a wide range of modern industrial fields. Contact us now to get a quote!
