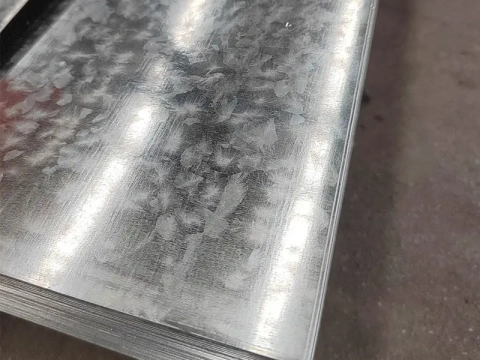

14 gauge galvanized steel, or 14 Ga galvanized steel, is galvanized steel with a thickness of approximately 1.89738 mm (or 1.9 mm). This gauge is commonly used in North America. Galvanized steel has extremely high corrosion resistance, making it an ideal building material. Wanzhi Steel specializes in the production of wholesale galvanized steel sheets, galvanized steel coils, and galvanized steel strips of this specification in any cut width and length. If you need 14-gauge galvanized steel, please feel free to send your request to us.
Zero Spangle, Small Spangle, Regular Spangle, Big Spangle
Length
Customizable
Thickness
0.0785 inch, 1.9939 mm
Width
600-1500 mm
Standard
ASTM AISI JIS DIN GB
MOQ
5 tons
Payment term
TT 30% Advance + 70% Balance
Sample
Free Available
Price Item
FOB, CIF, EXW, etc
Packing
Standard Sea-worthy Packing
Certification
ISO 9001, SGS, ABS, BV
What is 14 Gauge Galvanized Steel?
It refers to a 14 gauge steel plate with a layer of zinc on the surface of the steel plate. The full name of gauge is American wire gauge, abbreviated as AWG, a unit of measurement for diameter. 14 gauge is equal to 1.89738 mm. Therefore, 14 gauge galvanized steel is galvanized steel with a thickness of about 1.9 mm. The zinc coating not only enhances the corrosion resistance and service life of the steel, but also makes it beautiful in appearance.
Spangles
14 gauge galvanized steel benefits
Good corrosion resistance: The zinc layer on the surface of galvanized steel isolates air, water and other corrosive media, improving its corrosion resistance. And greatly extend its service life, fearless of humid, corrosive, high temperature, salt spray environment.
Stable mechanical properties: moderate strength, moderate thickness, suitable for structural components that require a certain degree of strength but are not too thick.
Good processability: the galvanized layer will not affect its cutting, bending, welding, etc.
Aesthetics and practicality: the galvanized layer makes the surface of steel more polished, not only has the function of rust prevention, but also plays a certain decorative role, suitable for construction, furniture and other fields.
Economical: Galvanized treatment is a cost-effective anti-corrosion method, compared with other anti-corrosion methods, the cost is lower.
Simple maintenance: galvanized steel is simple to maintain during the use of the process, without the need for frequent painting or anti-rust treatment, reducing the long-term use of costs.
Wide range of application: Widely used in construction, machinery manufacturing, automobile industry, electric power, agriculture, etc. It is suitable for making all kinds of structural parts, brackets, guardrails, pipelines and so on.
Small spancle coil
GI Big Spangle Mental Surface
Commonly used substrates
Cold-rolled steel substrate
DX51D+Z: general purpose, European standard, basic grade galvanized sheet, suitable for light processing.
DX52D+Z: parts that require slight forming processing, better formability than DX51D, tensile strength 270-420MPa.
DC51D+Z: corresponding to Chinese grade CR4, used for stamping parts, low carbon soft steel, high elongation, suitable for deep drawing.
DC52D+Z: corresponding to Chinese grade CR5, used for complex forming parts, ultra-deep drawing grade, zinc layer with excellent corrosion resistance.
Hot-rolled steel substrate
S350GD+Z: European standard, used for structural parts and building frames, with high strength, galvanized anti-rust, suitable for welding processing.
Ordinary carbon steel
Q195: low carbon steel, yield strength 195MPa, good plasticity, low strength, easy to weld.
Q345: Now also called Q355, low alloy high strength steel, yield strength ≥ 345MPa, high strength and low temperature impact resistance.
Key difference
“+Z” suffix: indicates hot dip galvanized coating (Zinc Coated), such as DX51D+Z.
“D” prefix: cold rolled substrate (such as DC51D), different from hot rolled substrate (such as S350GD).
European standard vs national standard: DX/DC series according to European EN standard, Q series according to Chinese GB standard.
regular-spangle-coil
14 Gauge Galvanized corrugated sheet
Where is 14 gauge galvanized steel used?
Construction field: commonly used in roofs, walls, eaves, gutters and other parts. No. 14 galvanized corrugated steel sheet can be used for walls and roofs, providing good corrosion resistance and structural strength.
Manufacturing field: structural parts, brackets, and guardrails for manufacturing mechanical equipment, automobiles, ships and other products are widely used due to their good processing performance and corrosion resistance.
Agricultural field: such as the frame and support structure of the vegetable greenhouse, thanks to its corrosion resistance and high strength, it can adapt to the outdoor environment.
Transportation field: manufacturing vehicles, ships, pipelines and other products. For example, it can be used to make truck compartments, ship decks and hull structures, etc.
Household and industrial: in the fields of home appliances, household goods, petrochemicals, etc., it can make refrigerator back panels, air conditioning floors, structural parts of petrochemical equipment, etc.
Steel structure frame
Galvanized Metal House

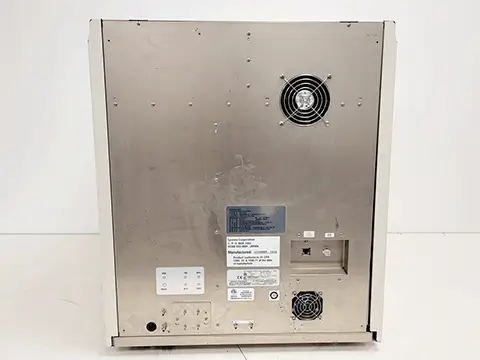

Washing machine back panel
Production and Package
Pretreatment: The steel base is first treated with pickling to remove surface grease, oxidized layer, rust and impurities.
Hot dip galvanizing: The steel is immersed in a molten zinc solution for hot dip galvanizing. At high temperatures, the zinc solution reacts with the steel surface to form a zinc-iron alloy layer, followed by a uniform zinc coating on the surface. This process effectively enhances the corrosion resistance of the steel.
Cooling and post-treatment: After galvanizing, the zinc is cooled to prevent distortion and to allow the zinc layer to solidify. Subsequently, passivation or other chemical surface treatments can be applied to further enhance its properties.
Quality Inspection: This includes checking the appearance quality, thickness, adhesion and rust resistance of the coating to ensure that the product meets the standard requirements.
Cutting and Packing: Cut the galvanized steel as needed to obtain the proper dimensional accuracy, and then pack it to prepare for transportation and storage.
14-Gauge Galvanized Steel Product Types
GI Embossed Sheet/Roll: The surface is pressed with concave and convex patterns (such as diamonds, orange peel patterns, etc.), and the patterns are formed by cold rolling or hot rolling. The patterns increase friction, improve aesthetics, and slightly increase rigidity.
Perforated Sheet/Roll: The surface is evenly distributed with round holes, square holes, rectangular holes, long holes and other holes, which are formed by stamping or laser cutting. It is convenient for air circulation and reduces the weight of the sheet while maintaining structural strength.
Corrugated Sheet: Galvanized steel sheet with a wavy (corrugated) cross-section, made by roller forming process. Enhanced rigidity, easy drainage, and convenient installation.
GI Roof Sheet: Galvanized steel sheet specially used for building roofs, usually customized specifications, can be matched with corrugated, flat or special profiled designs. It can be pressed into antique tiles, trapezoidal sheets and other styles.
Flat Plain Sheet/Roll: Galvanized steel sheet/roll with a flat surface and no patterns is the most basic type of galvanized sheet. It is highly versatile and cost-effective, and can be used directly or further processed.
Color Perforated Steel Coil
Galvanized Metal Roof
Galvanized corrugated sheet
14gauge Galvnized steel Supplier- Wanzhi Steel
When choosing and using No. 14 galvanized steel, it is necessary to control the content of the galvanized layer. You can consult the manufacturer for professional guidance, such as China Wanzhi Steel, which is a high-quality Chinese manufacturer with 14 years of export experience. The factory is located in Shandong Province, China, with a monthly production capacity of 2,000 tons and ISO 9001 international certification.
GI Strip Shipped To Turkey
PPGI Sheets Shipped To Lebanon
We focus on product quality control, provide the most reasonable price, and provide excellent pre-sales and after-sales services. We will recommend the appropriate specifications according to the purpose.
If you are looking for the right material for your project, please feel free to contact us and visit our factory online.
