ZAM Sheet For Sale

ZAM steel sheet is gradually replacing traditional galvanized sheet with its excellent corrosion resistance, self-healing properties and high cost performance, becoming an ideal material in the fields of construction, agriculture and industry. Using the unique Zn-Al-Mg ternary coating technology, its salt spray resistance can reach more than 5 times that of ordinary galvanized sheet, and the incision protection ability is significantly improved. It is suitable for harsh environments such as color steel tiles, automotive parts, photovoltaic brackets, etc., taking into account durability and cost-effectiveness. Wanzhi Steel specializes in supplying high-quality ZAM Steel with different coating thicknesses and accepts customized sizes. If you are interested, you are welcome to contact us!

0.5mm thickness ZAM Coil production

0.5mm thickness ZAM Coil production

ZAM Corrugated Sheet

ZAM Corrugated Sheet

Specifications

Item ZAM steel
Place of Origin Shandong, China
Standard AISI, ASTM, DIN, JIS, GB, EN
Delivery Time 18-28 Days
Based Material Cold rolled steel
Thickness 0.3mm-2.5mm
Width 600mm-1550mm
Coating Thickness 60-180g/m2
Surface Treatment Chromated skin passed/oiled/non-oiled /dry/Anti-finger printing
Color Silver white
Sample Free Available
Payment term TT 30% Advance + 70% Balance
Price Item FOB, CIF, EXW, CFR, etc
Packing Standard export packaging
Certification ISO 9001, SGS, ABS, BV
MOQ 10 tons
Transportation By land, by sea

What is ZAM steel?

Zinc-aluminum-magnesium coated steel is a high-end anti-corrosion steel that forms a coating of three elements, Zn-Al-Mg, on the surface of low-carbon steel through a hot-dip coating process. The coating content is: Zn90-95%, Al3-11%, Mg1-3%. The addition of Mg further improves the performance of the steel, and it can make the steel self-repairing from scratches. ZAM steel has excellent corrosion resistance, the price is only 1/3 of stainless steel, and the service life is extended by 3-5 times.

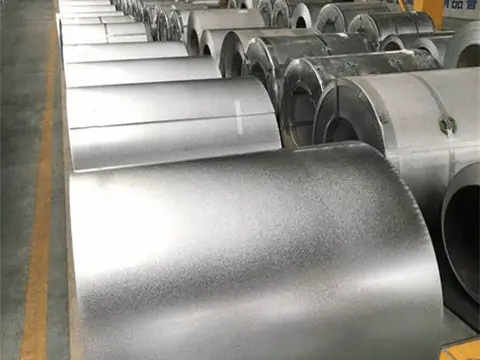

G250 G350 G550 Hot Dipped Galvanized ZAM Steel Coil

G250 G350 G550 Hot Dipped Galvanized ZAM Steel Coil

ZAM Steel Sheet

ZAM Steel Sheet

ZAM Steel Features

  • Chlorine-alkali corrosion resistance: ZAM steel’s corrosion resistance is 3-20 times that of traditional galvanized steel. The dense oxide protective layer on the surface blocks the external corrosive environment and has a long service life.
  • Cut self-healing ability: Effectively prevents the formation of red rust, which is an important advantage of ZAM steel compared to ordinary coated steel plates. When the cross section is generated, a magnesium oxide film will be formed, covering the steel base, playing an anti-corrosion role.
  • Salt spray and ammonia resistance: The salt spray resistance of its flat part is about 10-20 times that of galvanized sheet, and the ammonia resistance is 2 times that of galvanized sheet. The acid and alkali resistance is better than that of aluminum zinc silicon plate and galvanized – 5% aluminum plate.
  • Good processing performance: Excellent wear resistance and scratch resistance, high coating hardness, can adapt to various processing such as stamping and bending. And it has stable friction characteristics, reducing the wear of the coating and the tensile defects of the parts.
  • Excellent welding performance: The addition of magnesium can reduce the spatter of weld attachments during laser welding, making ZAM steel have good welding performance. By adopting appropriate process means, the welding strength can be ensured.
  • High cost performance: The performance of ZAM steel is close to that of stainless steel, but its price is generally 40% cheaper than stainless steel. While meeting the performance requirements such as corrosion resistance, it can save costs and is economical.
SuperDyma Steel

SuperDyma Steel

Applications

It can be used directly as a finished product or as a substrate for color-coated steel and pre-coated steel. The applications are as follows.

Construction field

Roofs and exterior walls of large public buildings such as stadiums, convention centers, power plants, stadiums, airports, and exhibition halls.

Automotive industry

Used to manufacture automotive floor panels, body frames, doors and other parts. In Europe and other places, roads need to be salted for deicing in winter, and ordinary steel is easily corroded, while ZAM Sheet can effectively resist salt corrosion and protect automotive parts.

Transportation hubs and bridges

Can be used to make highway and bridge guardrails. Anti-corrosion layers used in structures such as railway stations, subway stations, and cross-sea bridges to resist seawater erosion and air pollution.

18gauge ZAM standing seam roof

18gauge ZAM standing seam roof

Market roof

Market roof

Wall Panels

Wall Panels

Home appliance field

Used to manufacture the outer shells of home appliances such as refrigerators, air conditioners, and washing machines. ZAM Sheet provides excellent adhesion for paint and other coatings.

Agriculture and animal husbandry field

Can be used to build poultry houses, corrals, and troughs. Poultry and livestock manure is acidic and corrosive, and the acid and alkali resistance of ZAM Sheet allows it to remain stable in this environment.

Medical equipment manufacturing

ZAM steel plates are used in operating tables, disinfection cabinets, and other structural parts, which not only meet the sterility requirements but also have corrosion resistance.

Energy and infrastructure

It can ensure that solar brackets can be used outdoors for more than 20 years and are suitable for photovoltaic power stations, wind power towers, energy storage systems, natural gas, oil pipelines, and other infrastructure.

ZAM Steel Usage

ZAM Steel Usage

Color-coated Steel

Color-coated Steel

Exterior wall decoration

Exterior wall decoration

ZAM Sheet Supplier-Wanzhi Steel

ZAM sheet is also called SuperDyma steel sheet. Regarding supplier and manufacturer, I recommend the Wanzhi Steel Group. Wanzhi Steel is an experienced manufacturer and supplier of ZAM steel sheets. For ZAM steel sheet production and export, we have over 14 years of experience and ordered high-technology equipment to manufacture ZAM sheets. Moreover, ZAM steel sheets production line with an annual 200000 tons output to meet clients’ needs. In addition, we have strict quality inspection system devices to control the width and thickness of the sheets. Our ZAM sheets have been exported to over 150 countries and regions all over the world, such as the Philippines, Ecuador, Vietnam, Cambodia, Turkey, Azerbaijan, and so on. At our factory, we have two ZAM steel production lines, you are welcome to visit our factory. Also, if you want to know the latest price, please feel free to contact us.

ZAM Steel Manufacturing

ZAM Steel Manufacturing

Wanzhi Steel Factory

Wanzhi Steel Factory

Conclusion

In the steel material market, ZAM steel sheet is the hot-selling product, because of its high strength, lightweight, weathering resistance, and chemical corrosion resistance. As a professional manufacturer and supplier of ZAM sheets, we have professional sales manager and engineers service you for 24 hours a day. We also provide professional pre-sale and post-sale services for you. Our engineers will recommend the zinc layer thickness and width according to the use environment when you order it. If you have any questions about the ZAM steel sheet, please don’t hesitate to contact us.

Discover how ZAM Steel Sheet can provide a longer lasting protective solution for your project!
