RAL3020 PPGI/PPGL Coil

RAL 3020 color-coated steel coil (PPGI/PPGL coil) is a traffic-red color-coated steel coil that is very popular in the domestic market. It is primarily processed into corrugated color-coated steel sheets for use in roofing or facade projects.

With its professional production lines and processing equipment, Wanzhi Steel can supply both RAL 3020 PPGI/PPGL coils and corrugated color-coated steel sheets.

Available Specifications

RAL3020 PPGI Coil Production Video

RAL 3020 Color-Coated Steel Coils Benefits

• Eye-catching Color: RAL 3020 is a highly saturated red with strong visual impact, making it a popular choice for applications requiring warnings, signage, or brand highlighting.
• Rust and Corrosion Resistance: The base material (galvanized coil or galvalume coil) of RAL 3020 color-coated steel coils generally offers corrosion resistance. Combined with the surface paint coating, this dual-layer protection further enhances its corrosion resistance.
• Excellent Weather Resistance: There are various types of surface coatings available, particularly HDPE and PVDF coatings, which offer exceptional weather resistance.
• Easy to Process: The material can be cut and bent as needed, making it simple and convenient to work with. It can be adapted to meet installation requirements for various sizes and shapes.

RAL3020 PPGI Coil

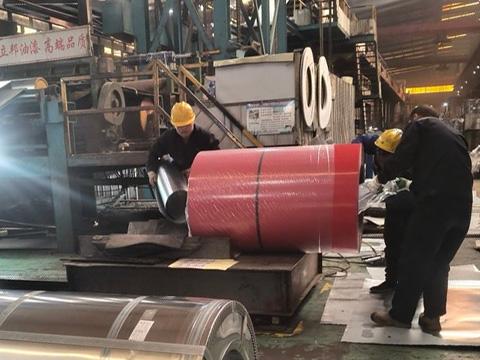

Packing steel coils

Production Process for Pre-painted Steel Coils

In summary, the production process is roughly as follows: → Uncoiling — Cleaning — Painting — Drying — Rewinding

• Substrate pretreatment: The substrate (galvanized steel coil or galvanized-aluminum steel coil) is uncoiled using uncoiling equipment. The substrate coil is then cleaned and undergoes chemical treatment to ensure proper paint adhesion.
• Coating Application: Using a continuous roller coating method, primer and topcoat are applied evenly and sequentially to the surface of the pretreated substrate coil.
• High-Temperature Curing: The painted steel sheets are fed into a continuous baking oven, where hot air circulation evaporates the solvents in the paint and triggers a chemical reaction (cross-linking curing). After this process, the paint transforms from a liquid into a tough, solid film.
• Cooling and Coiling: The cured steel sheets undergo cooling to return to room temperature, then are rewound into coils using coiling equipment. Finally, after passing strict quality inspections, qualified pre-painted steel coils are ready for packaging.

Applications

• Building roofs and walls: This is the most common application. This red color is frequently seen on the roof and wall panels of factories, warehouses, prefabricated houses, and portable buildings, especially in industrial parks.
• Industrial equipment and fencing: Equipment housings, electrical distribution boxes, and factory perimeter fences that require safety markings.
• Transportation-related applications: This red coating can be used for traffic signs, bus shelter exteriors, and similar applications, where the color serves as a visual warning.
• Furniture and appliances: Although less common, this red coating is sometimes used on industrial-style shelving, office cabinets, and even the exteriors of household appliances.

Redemption Hospital

Red corrugated roofing sheets

Wanzhi Steel: A Leading Chinese Manufacturer of Pre-painted Steel Coils

We have been in business for over 15 years and have a professional production team, sales team, operations team, etc. We have three advanced production lines and have exported to more than 120 countries, including Brazil, Venezuela, Nigeria, Russia, Turkmenistan, Oman, Saudi Arabia, UAE, and Ghana. If you have any needs for pre-coated steel coils, please feel free to contact me.

Our Production Line Showcase

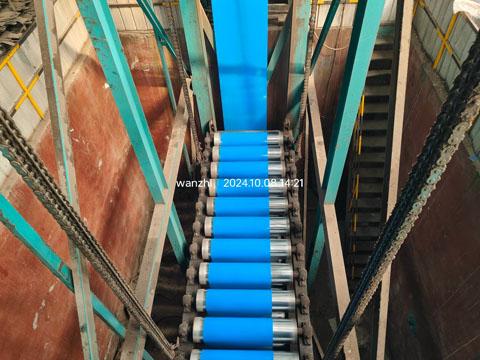

Continuous roller coating paint

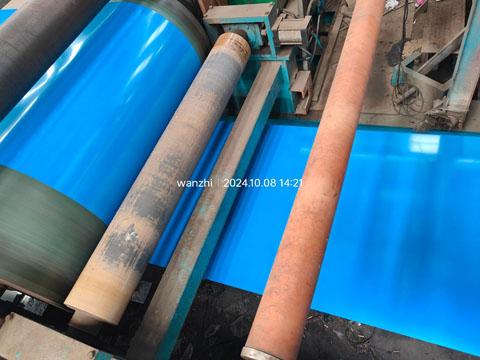

Curing of paint

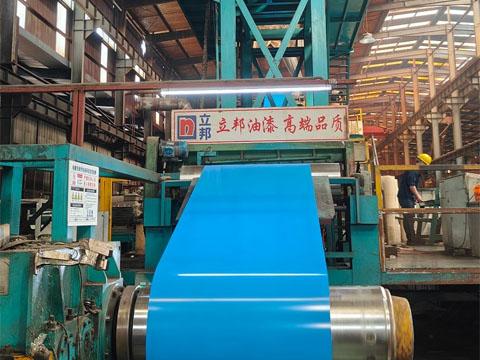

production completed

If you are having trouble choosing between RAL3020 PPGI coil and RAL3020 PPGL coil, please contact us. We will connect you with a sales manager who has over 10 years of experience in the steel industry to address all your questions.
