26Ga, 30Ga Galvanized Steel Sheets Exported to Portugal

In order to meet the needs of local industrial plants and residential projects, Portuguese customers purchased 512 tons of standard zinc-spangle galvanized steel plates from our company. After strict production control and anti-rust packaging for sea transportation, this batch of materials successfully passed the Portuguese customs inspection and has now been put into the construction of local key projects. The following are the details of the whole process of this cooperation.

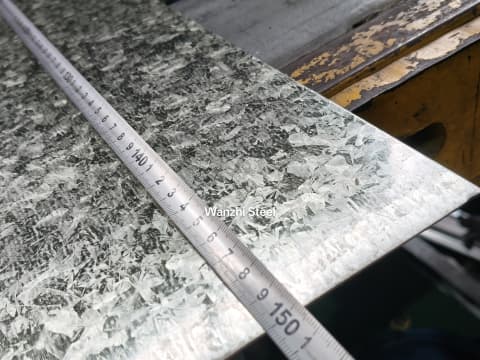

Width measurement

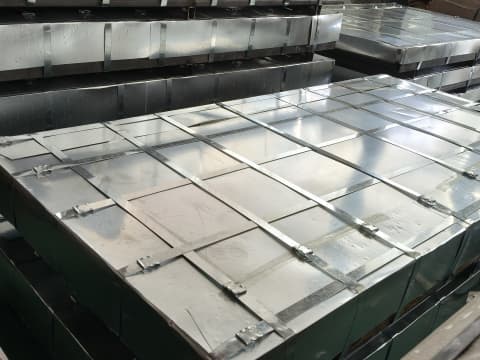

External steel sheet packaging

Customer Background

Portugal is an important coastal country in Europe, and its construction industry has extremely high requirements for weather resistance of materials. The customer is one of the top five local steel structure engineering contractors. After comparing multiple suppliers, it finally selected the 26/30 Gauge galvanized steel sheets produced by our company. It is mainly used for roof and wall enclosure systems. It is particularly emphasized that the product must comply with the EN 10346 standard to adapt to the high salt spray environment on the Atlantic coast.

Order details

• Product name: hot-dip galvanized steel sheet (standard zinc spangle).
• Thickness: 26 gauge (0.45mm)/30 gauge (0.31mm).
• Zinc layer weight: Z275 (Total weight 275g/m² on both sides).
• Sheet Size: 2400mm length×1500mm width.
• Total order quantity: 512 tons (320 tons for 26 gauge, 192 tons for 30 gauge).
• Packing requirements: moisture-proof paper + steel strapping + wooden pallet.
• Delivery cycle: Shipment will be completed 40 days after the contract is signed.

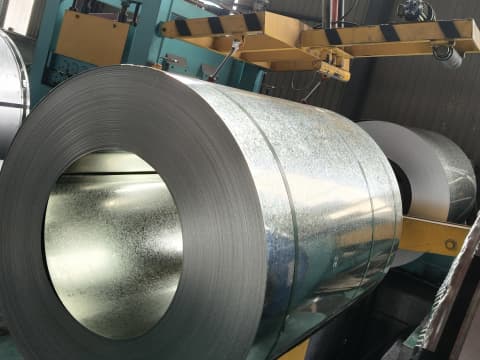

Prepare to cut

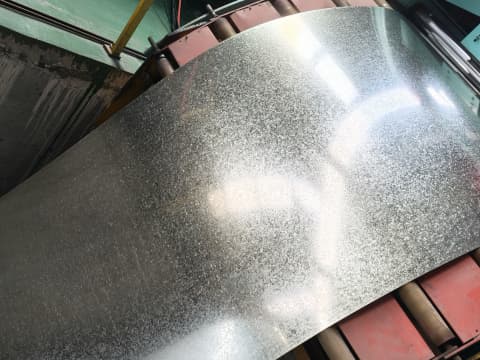

Cutting

Project Production

• Substrate pretreatment: Adopt Anshan DC04 grade cold-rolled substrate, electrolytic degreasing and pickling (hydrochloric acid concentration 18%), Entrance loop storage 200 meters to ensure continuous production.
• Hot-dip galvanizing: The zinc pot temperature is precisely controlled at 455±3℃, the air knife pressure is 0.8Bar, the spacing is 12mm, to ensure the uniformity of the zinc layer, and the “lead antimony” alloy is used to control the crystallization of zinc flowers, and the flower diameter is 3-8mm.
• Post-processing section: chromate passivation treatment (chromium content 1.2g/m²), double-roller skin-finishing machine operation (pressure 600KN), online electrostatic oiling (oil film weight 1.5g/m²).
• Slitting and packaging: width tolerance ±0.3mm, each bundle is wrapped with moisture-proof paper, and PVC corner guards are installed at the ends.

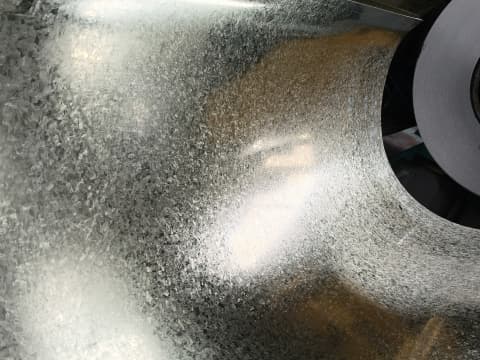

Zinc flower on the reverse side

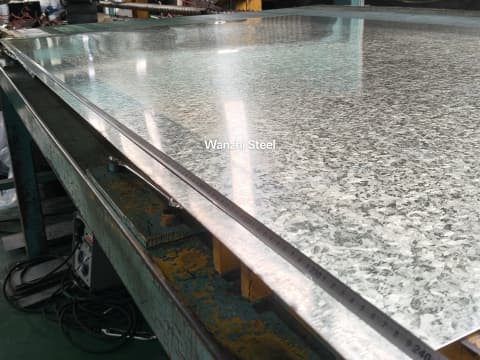

Surface spangle

Quality Assurance System

• Sampling and testing every hour: zinc layer weight (magnetic induction thickness gauge), surface tension (dyne pen test), bending performance (0T-3T test).
• Third-party verification: The customer found a third-party verification, including TUV certified salt spray test report (1500 hours without red rust), material certificate (SGS test carbon content ≤0.08%).

Logistics solutions

• Port of shipment: Qingdao Port, Port of destination: Lisbon Port.
• Transportation method: 32 40-foot high cabinets (16 tons net weight per cabinet).
• Loss prevention measures: Humidity recorder is placed in the container, 10 cm ventilation space is provided between the steel plate and the container wall, and marine insurance covers the entire journey.

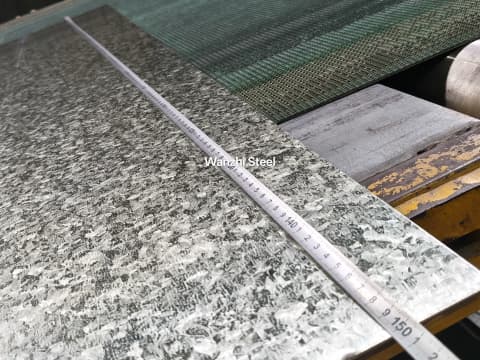

Width detection

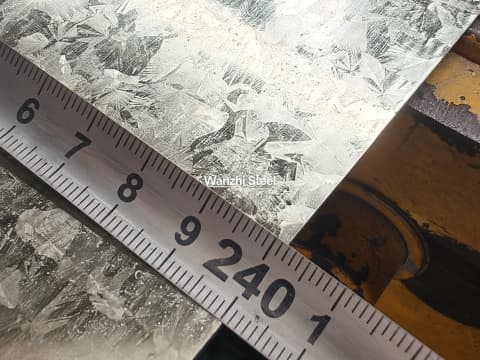

Length measurement

Thickness inspection

Product Advantages

• Strong corrosion resistance: The zinc layer on the surface forms a protective film, which can effectively resist corrosion from the atmosphere, water, soil, etc., and prolong the service life.
• Beautiful appearance: The zinc layer is uniform, the surface is bright and clean, and can be directly used for decorative scenes or reduce subsequent painting processes.
• Good processing performance: Easy to cut, bend, weld, stamp, etc., adapt to a variety of processing needs, and convenient to make various products.
• Moderate cost: Compared with materials such as stainless steel, it has a higher cost-effectiveness and can control costs while ensuring anti-corrosion performance.
• Widely used: Applicable to many fields such as construction, automobiles, home appliances, agriculture, such as roofs, air ducts, auto parts, etc.

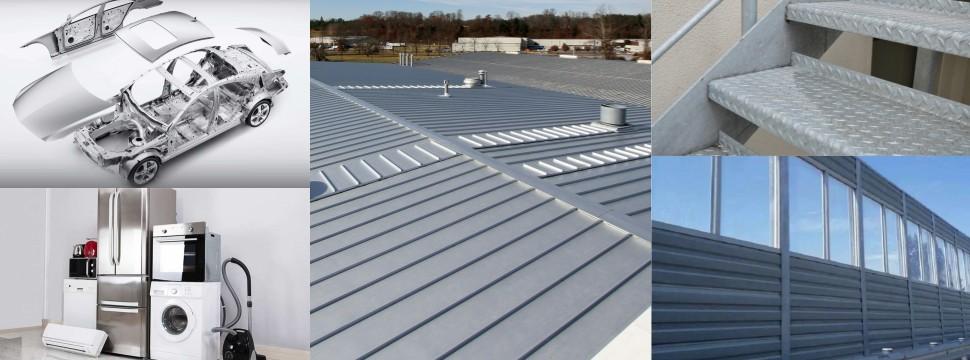

Applications

Customer Testimonials

“The first batch of 30-gauge steel plates that arrived performed well during the rainy season in Lisbon. There was no zinc layer falling off after the roof was installed. The supervision unit highly praised the consistency of the materials.” ——Miguel Silva, Engineering Director of Portuguese Customer

Wanzhi Steel can provide global customers with a full set of steel solutions that meet international certifications.

If you need galvanized steel sheets or corrugated roof sheets, please contact us.
