Dx51D+AZ150 GI steel is a high-strength, corrosion-resistant hot-dip galvalume steel with excellent deep drawing performance and weldability, suitable for a variety of processing methods. It is widely used in construction, home appliances, and automobile manufacturing. As a professional galvanized steel manufacturer, Wanzhi Steel has advanced continuous galvalume production lines, supports customized coating, thickness, width, coil weight, and provides perforation, welding, embossing, bending and other mechanical processing services. Please contact us for detailed technical parameters.
Spray painting, fingerprint resistance, oiling, passivation, lamination, etc.
Aluminum Content
55%
Sample
Free Available
Payment term
TT 30% Advance + 70% Balance
Price Item
FOB, CIF, EXW, CFR, etc
Packing
Standard export packaging
Certification
ISO 9001, SGS, ABS, BV
MOQ
5 tons
What is Dx51D+AZ150 GI steel?
Dx51D+AZ150 GI steel is a high-formability galvalume steel that complies with EN 10346. It has a yield strength of 140-280MPa and AZ150 double-sided coating (75g/m²/side), and performs well in building roofs, home appliance housings, automotive sheet metal, and other fields.
Character resolution
Dx51D: The European Standard (EN 10346) grade for hot-dip galvanized steel sheet for cold forming.
Density: 7.85 g/cm³ (same as normal carbon steel).
Coefficient of Thermal Expansion: 11.5 × 10-⁶/°C (20-100°C).
Thermal Conductivity: approx. 50 W/(m-K).
Surface Finish: Spangle, zero spangle.
Mechanical properties
Yield strength: 140 – 280 MPa.
Tensile strength: 270 – 500 MPa.
Elongation:≥18%.
Vickers hardness: 40 – 75.
Chemical property
Chemical composition: Fe, C, Si, Mn, P, S, Ti .
Salt spray test: ≥ 500 hours, this is the time of the appearance of red rust.

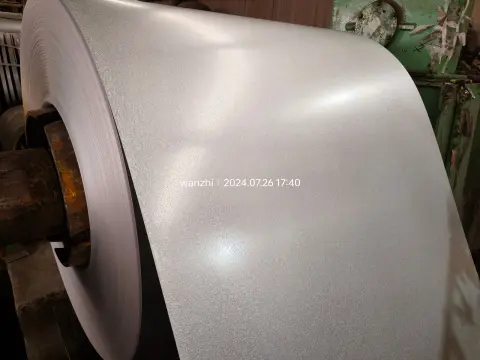

galvalume steel surface

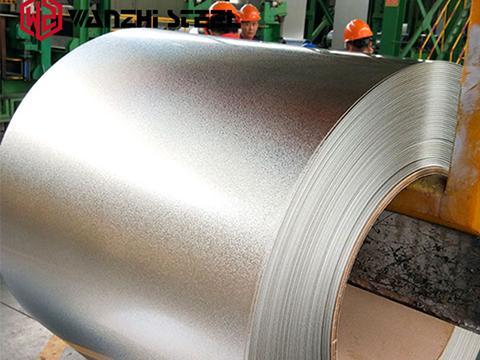

galvalume az150
Characteristic
Excellent corrosion resistance: the coating consists of 55% aluminum, 43.4% zinc and 1.6% silicon, and the dense oxidized film on the surface can resist the erosion of the atmosphere, rain, humidity, mild acid and alkali. Its rust resistance is 2-6 times higher than ordinary galvanized sheet.
Self-healing of cuts: Aluminum-zinc alloy at the cutting edge will flow to cover the bare metal, reducing the risk of local corrosion.
High-temperature stability: the melting point of aluminum (660 ℃) is much higher than zinc (419.5 ℃), so that the aluminum-zinc coated sheet can withstand temperatures of about 250 ℃, short-term up to 300 ℃ or less, high-temperature environment to maintain structural stability.
Formability: DX51D grade cold rolled steel base, both certain strength and toughness. Can be stamping, bending, stretching and other cold processing, adapted to the manufacture of complex structures.
Weldability: The silicon element in the plating improves the weldability, and by adjusting the process parameters, it can be realized to weld with ordinary steel plate.
Painting performance: the surface oxide film has strong adhesion to the paint, and it is not easy to appear peeling and shedding after painting, and it is easy to adjust the appearance color according to the demand.

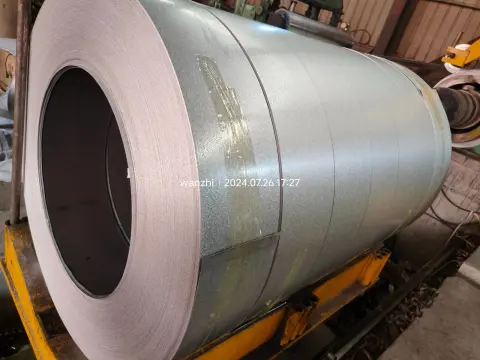

Dx51D+AZ150 GI steel
Galvalume Steel Coil
Beautiful surface: the surface is silver gray metallic luster, flat and smooth, no need for additional treatment to maintain a good appearance; can be painted, laminating, printing and other secondary processing, and the coating is not easy to fall off.
Economy: Although the initial cost is higher than ordinary galvanized sheet, compared with stainless steel or pure aluminum sheet, aluminized zinc steel maintains high performance while costing less, and is easy to maintain and does not need to be replaced frequently, resulting in a higher overall cost-effectiveness.
Application Areas
Construction field
Roof and wall: can be used for the construction of roofs and walls of industrial plants, warehouses, commercial buildings, and residential buildings.
Steel structure protection: anti-corrosion coatings for bridges and elevated steel structures to reduce maintenance costs and extend life.
Partitions and decoration: used for indoor partitions, ceilings or exterior wall decoration, sound insulation walls, etc.
Home appliance manufacturing
Shell and components: used to make refrigerator, washing machine, air conditioner shell, back panel, or internal structural parts, also used for LCD frame, CRT explosion-proof belt, LED backlight, and other components. Thanks to its good formability.
Kitchen appliances: used for external protection of high-temperature resistant home appliances such as ovens and microwave ovens, using the heat resistance of aluminum elements in the coating.
Storage Tank
Exterior wall decoration
GL Metal Roof
Automobile industry
Body parts: manufacturing automobile chassis, wheel covers, fuel tanks, wiper accessories, truck boxes, exhaust pipes and other parts, replacing some galvanized steel sheets.
Interior and sound insulation materials: used as the base material of in-vehicle sound insulation boards, mufflers or decorative parts to meet the requirements of lightweight and durability.
Electrical and Electronics
Equipment Housing: Cabinets for electrical equipment such as distribution boxes, control cabinets, and high-voltage switch cabinets, used in various places such as power plants and substations.
Radiators and thermal conductive parts: Use the high thermal conductivity of aluminum to make electronic equipment radiators or thermal conductive substrates.
Agriculture and Animal Husbandry
Farming Facilities: Construct livestock and poultry house roofs, fences, or feed storage bins to resist corrosion such as ammonia and feces.
Agricultural Machinery: Make protective covers or structural parts for equipment such as tractors and harvesters, greenhouse pipes, granaries, etc.
Other Fields
Ventilation Ducts: Make pipes for air conditioners, ventilation systems, and chimney pipes to resist condensation water corrosion.
Shelves and Storage: Shelves, pallets, etc., warehouse enclosures for logistics warehouses.
Equipment Parts: It can also make thermal insulation covers, heat exchangers, dryers, water heaters, and other parts.
Chequer Plate Carriage
Mechanical Pipeline
Car Body
FAQ
Q1: What is the difference between Dx51D+AZ150 and DX52D+AZ180?
A: DX51D is suitable for general forming, DX52D is suitable for deeper stamping. AZ180 has thicker coating and stronger corrosion resistance.
Q2: Can you provide anti-fingerprint treatment?
A: Wanzhi Steel can provide environmentally friendly chrome-free anti-fingerprint coating. And all other surface treatments.
Q3: What is the minimum order quantity (MOQ)? How to ship?
A: The minimum order quantity is 5 tons, and we ship by sea or land.
Galvalume Metal Roofing
Galvalume profiled sheet
Wanzhi Steel—Galvalume AZ150 Supplier
As a steel company established for more than ten years, Wanzhi Steel has always been committed to providing customers with high-quality Galvalume steel plates/coils/strips and customized processing solutions:
Core advantages
Advanced production lines: equipped with 2 hot-dip galvanizing and Galvalume continuous production lines, with an annual production capacity of 600,000 tons.
Strict quality control: passed ISO 9001 quality management system certification, multiple quality inspections of coating thickness, tensile strength, and rust resistance, and accepted third-party testing.
Price advantage: large-scale production reduces costs, no middlemen, and direct delivery at factory prices.
Delivery guarantee: 5 tons minimum order | Support sample service | Large inventory of conventional products | Delivery time 18-28 days.
Packaging of Galvalume Coils
Outer packaging of gi sheet
Get Galvalume AZ150 Price from Wanzhi Company
As the preferred model of galvalume steel plates in the construction and manufacturing industries, Wanzhi Steel Dx51D+AZ150 GI steel plates have been successfully used in projects such as the Libyan Redemption Hospital, Turkey’s garbage station, and Uzbekistan’s agricultural greenhouses through precise coating control and stable mechanical properties. We provide one-stop service to ensure the superior quality of each batch of materials. Looking forward to becoming your next partner!
